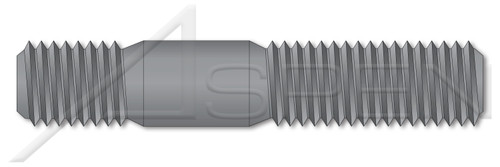

M16-2.0 X 55mm DIN 938, Metric, Studs, Double-Ended, Screw-in End 1.0 X Diameter, Class 5.8 Steel, Plain

M16-2.0 X 55mm DIN 938, Metric, Studs, Double-Ended, Screw-in End 1.0 X Diameter, Class 5.8 Steel, Plain

PART NUMBER:
ME387-1620X55
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
  • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
  • Double-ended studs are used to join parts when a bolt or screw head is not an option.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M16
  • Thread Pitch: 2.0
  • Diameter (Dimension): 16mm
  • Diameter (Minimum): 15.73mm
  • Diameter (Maximum): 16mm
  • Length (Nominal): 55mm
  • Length Overall: 71mm
  • Screw-End Thread Length: 16mm
  • Thread Length (Nominal): 38mm
  • Body Length (Nominal): 17mm
PRODUCT ATTRIBUTES
  • Category: Studs, Double-Ended
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Screw-in End 1.0 X Diameter
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 5.8 Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 938
Diameter (Nominal):
M16
Shop by Material:
Steel
Thread Direction:
Right-Hand Thread
Body Length (Nominal):
17mm
Category:
Studs, Double-Ended
System of Measurement:
Metric
Screw-End Thread Length:
16mm
Diameter (Minimum):
15.73mm
Order:
Machine Thread Fasteners
POS:
ME387-1620X55-00010,ME387-1620X55-000100
Coating:
Uncoated
Brand:
Aspen Fasteners
Thread Pitch:
2.0
Shop by System of Measurement:
Metric
Product Class:
Externally Threaded Fasteners
Form and Design:
Screw-in End 1.0 X Diameter
Length (Nominal):
55mm
Material:
Steel
Standards and Specifications:
DIN 938
Thread Length (Nominal):
38mm
Diameter (Dimension):
16mm
Diameter (Maximum):
16mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product39/ME387-1620X55.PDF
Material Grade:
Class 5.8 Steel
Length Overall:
71mm
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME387-1620X55.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME387-1620X55
Print
  • Description
    • MEASURING THIS STUD: The NOMINAL LENGTH is the longer THREAD LENGTH plus the unthreaded BODY LENGTH.
    • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
    • Double-ended studs are used to join parts when a bolt or screw head is not an option.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M16
    • Thread Pitch: 2.0
    • Diameter (Dimension): 16mm
    • Diameter (Minimum): 15.73mm
    • Diameter (Maximum): 16mm
    • Length (Nominal): 55mm
    • Length Overall: 71mm
    • Screw-End Thread Length: 16mm
    • Thread Length (Nominal): 38mm
    • Body Length (Nominal): 17mm
    PRODUCT ATTRIBUTES
    • Category: Studs, Double-Ended
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Screw-in End 1.0 X Diameter
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 5.8 Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 938
  • 3D Product View
