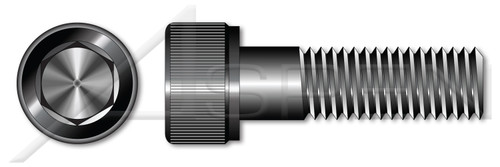

M16-2.0 X 75mm DIN 912 / ISO 4762, Metric, Hex Socket Head Cap Screws, Class 12.9 Steel, Plain

PART NUMBER:
ME266-1620X75-00020
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M16
  • Thread Pitch: 2.0
  • Diameter (Dimension): 16mm
  • Diameter (Minimum): 15.73mm
  • Diameter (Maximum): 16mm
  • Length (Nominal): 75mm
  • Thread Length (Nominal): 44mm
  • Drive Recess Size: 14mm
  • Drive Recess Width: 14mm
  • Drive Recess Depth: 8mm
  • Head Diameter: 24mm
  • Head Diameter (Minimum): 23.67mm
  • Head Diameter (Maximum): 24mm
  • Head Height, Overall: 16mm
  • Head Height, Overall (Minimum): 15.57mm
  • Head Height, Overall (Maximum): 16mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Pitch: Coarse Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 12.9 Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 912 / ISO 4762
Product UPC Code:
698435227842
Brand:
Aspen Fasteners
Category:
Socket Head Cap Screws
Coating:
Uncoated
Diameter (Dimension):
16mm
Diameter (Maximum):
16mm
Diameter (Minimum):
15.73mm
Diameter (Nominal):
M16
Drive Recess Depth:
8mm
Drive Recess Size:
14mm
Drive Recess Width:
14mm
Drive Style:
Hex Socket Drive
Head Diameter:
24mm
Head Diameter (Maximum):
24mm
Head Diameter (Minimum):
23.67mm
Head Height, Overall:
16mm
Head Height, Overall (Maximum):
16mm
Head Height, Overall (Minimum):
15.57mm
Head Style:
Cylindrical Head
Length (Nominal):
75mm
Material:
Steel
Material Grade:
Class 12.9 Steel
Order:
Machine Thread Fasteners
Origin:
Origin Undefined
POS:
ME266-1620X75-00020
Pitch:
Coarse Thread
Product Class:
Externally Threaded Fasteners
Standards and Specifications:
DIN 912 / ISO 4762
System of Measurement:
Metric
Thread Direction:
Right-Hand Thread
Thread Length (Nominal):
44mm
Thread Pitch:
2.0
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME266-1620X75.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME266-1620X75
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product66/ME266-1620X75.PDF
Shop by Application:
Socket Products
Shop by Material:
Steel
Shop by System of Measurement:
Metric
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M16
    • Thread Pitch: 2.0
    • Diameter (Dimension): 16mm
    • Diameter (Minimum): 15.73mm
    • Diameter (Maximum): 16mm
    • Length (Nominal): 75mm
    • Thread Length (Nominal): 44mm
    • Drive Recess Size: 14mm
    • Drive Recess Width: 14mm
    • Drive Recess Depth: 8mm
    • Head Diameter: 24mm
    • Head Diameter (Minimum): 23.67mm
    • Head Diameter (Maximum): 24mm
    • Head Height, Overall: 16mm
    • Head Height, Overall (Minimum): 15.57mm
    • Head Height, Overall (Maximum): 16mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Pitch: Coarse Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 12.9 Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 912 / ISO 4762
    Product UPC Code:
    698435227842
  • 3D Product View
