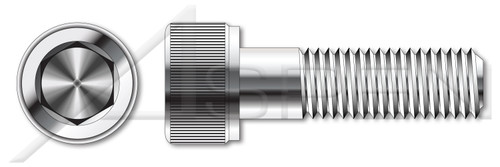

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M18
- Thread Pitch: 2.5
- Diameter (Dimension): 18mm
- Diameter (Minimum): 17.73mm
- Diameter (Maximum): 18mm
- Length (Nominal): 160mm
- Thread Length (Nominal): 48mm
- Drive Recess Size: 14mm
- Drive Recess Width: 14mm
- Drive Recess Depth: 9mm
- Head Diameter: 27mm
- Head Diameter (Minimum): 26.67mm
- Head Diameter (Maximum): 27mm
- Head Height, Overall: 18mm
- Head Height, Overall (Minimum): 17.57mm
- Head Height, Overall (Maximum): 18mm
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: DIN 912 / ISO 4762
Product UPC Code:
698435876354
- Brand:
- Aspen Fasteners
- Category:
- Socket Head Cap Screws
- Coating:
- Uncoated
- Diameter (Dimension):
- 18mm
- Diameter (Maximum):
- 18mm
- Diameter (Minimum):
- 17.73mm
- Diameter (Nominal):
- M18
- Drive Recess Depth:
- 9mm
- Drive Recess Size:
- 14mm
- Drive Recess Width:
- 14mm
- Drive Style:
- Hex Socket Drive
- Head Diameter:
- 27mm
- Head Diameter (Maximum):
- 27mm
- Head Diameter (Minimum):
- 26.67mm
- Head Height, Overall:
- 18mm
- Head Height, Overall (Maximum):
- 18mm
- Head Height, Overall (Minimum):
- 17.57mm
- Head Style:
- Cylindrical Head
- Length (Nominal):
- 160mm
- Material:
- Stainless Steel
- Material Grade:
- A4 Stainless Steel
- Order:
- Machine Thread Fasteners
- Origin:
- Origin Undefined
- POS:
- ME242-1825X160-000025
- Product Class:
- Externally Threaded Fasteners
- Standards and Specifications:
- DIN 912 / ISO 4762
- System of Measurement:
- Metric
- Thread Direction:
- Right-Hand Thread
- Thread Length (Nominal):
- 48mm
- Thread Pitch:
- 2.5
