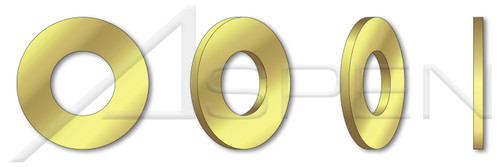

- DIN 125 / ISO 7089 are standard commercial metric flat washers.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
- The nominal diameter is the bolt size to use for this flat washer.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M18
- Diameter (Dimension): 18mm
- Inside Diameter (Nominal): 19mm
- Inside Diameter (Minimum): 19mm
- Inside Diameter (Maximum): 19.33mm
- Outside Diameter (Nominal): 34mm
- Outside Diameter (Minimum): 33.38mm
- Outside Diameter (Maximum): 34mm
- Thickness (Nominal): 3mm
- Thickness (Minimum): 2.7mm
- Thickness (Maximum): 3.3mm
PRODUCT ATTRIBUTES- Category: Standard Flat Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Form and Design: Not Chamfered
- Material: Brass
- Coating: Uncoated
- Standards and Specifications: DIN 125 Type A / ISO 7089
Product UPC Code:
692559830575
- Form and Design:
- Not Chamfered
- Inside Diameter (Minimum):
- 19mm
- Outside Diameter (Maximum):
- 34mm
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME151-18.zip
- Category:
- Standard Flat Washers
- Coating:
- Uncoated
- System of Measurement:
- Metric
- Diameter (Nominal):
- M18
- Material:
- Brass
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product83/ME151-18.PDF
- Thickness (Maximum):
- 3.3mm
- Shop by System of Measurement:
- Metric
- Diameter (Dimension):
- 18mm
- Inside Diameter (Nominal):
- 19mm
- Thickness (Nominal):
- 3mm
- Order:
- Flat Washers
- POS:
- ME151-18-00025
- Inside Diameter (Maximum):
- 19.33mm
- Shop by Material:
- Brass
- Thickness (Minimum):
- 2.7mm
- Outside Diameter (Nominal):
- 34mm
- Brand:
- Aspen Fasteners
- Standards and Specifications:
- DIN 125 Type A / ISO 7089
- Product Class:
- Washers
- Outside Diameter (Minimum):
- 33.38mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME151-18
