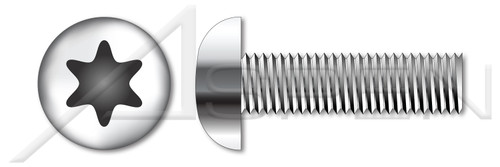

M2-0.4 X 5mm ISO 7380-1, Metric, Button Head Cap Screws, 6Lobe Torx(r) Drive, Full Thread, A2 Stainless Steel

PART NUMBER:
ME481-204X5X5-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Button head cap screws have a wider bearing surface and maintain a low head profile.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M2
  • Thread Pitch: 0.4
  • Diameter (Dimension): 2mm
  • Length (Nominal): 5mm
  • Thread Length: 5mm
  • Recess Size: T6
  • Head Diameter: 3.8mm
  • Head Diameter (Minimum): 3.5mm
  • Head Diameter (Maximum): 3.8mm
  • Head Height, Overall: 1.3mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Button Head
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ISO 7380-1
Product UPC Code:
698435883109
Order:
Machine Thread Fasteners
Drive Style:
6Lobe Drive
Drive Detail:
Torx(r) Generic Alternative
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Category:
Socket Head Cap Screws
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Coating:
Uncoated
Standards and Specifications:
ISO 7380-1
Diameter (Nominal):
M2
Diameter (Dimension):
2mm
Thread Pitch:
0.4
Length (Nominal):
5mm
Thread Length:
5mm
Recess Size:
T6
Head Diameter:
3.8mm
Head Diameter (Minimum):
3.5mm
Head Diameter (Maximum):
3.8mm
Head Height, Overall:
1.3mm
System of Measurement:
Metric
Brand:
Aspen Fasteners
Head Style:
Button Head
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Button head cap screws have a wider bearing surface and maintain a low head profile.
    • A 6-lobe recess is also known as a hexalobular internal drive.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M2
    • Thread Pitch: 0.4
    • Diameter (Dimension): 2mm
    • Length (Nominal): 5mm
    • Thread Length: 5mm
    • Recess Size: T6
    • Head Diameter: 3.8mm
    • Head Diameter (Minimum): 3.5mm
    • Head Diameter (Maximum): 3.8mm
    • Head Height, Overall: 1.3mm
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Button Head
    • Drive Style: 6Lobe Drive
    • Drive Detail: Torx® Generic Alternative
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ISO 7380-1
    Product UPC Code:
    698435883109

Contact us for availability information on part number ME481-204X5X5-001000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
