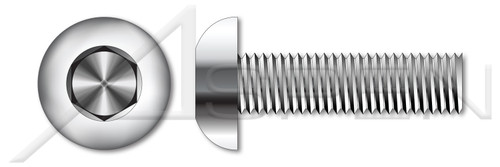

M2.5-0.45 X 14mm ISO 7380-1, Metric, Button Head Hex Socket Cap Screws, Full Thread, A4 Stainless Steel

PART NUMBER:
ME482-25045X14-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
Buy in bulk and save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Button head cap screws have a wider bearing surface and maintain a low head profile.
  • An internal hex socket drive is also known as an Allen drive.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M2.5
  • Thread Pitch: 0.45
  • Diameter (Dimension): 2.5mm
  • Length (Nominal): 14mm
  • Thread Length: 14mm
  • Recess Size: 1.5mm
  • Head Diameter: 4.6mm
  • Head Height, Overall: 1.5mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Button Head
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ISO 7380-1
Product UPC Code:
698435883963
Buy in bulk and save
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
Head Height, Overall:
1.5mm
Head Diameter:
4.6mm
Recess Size:
1.5mm
Thread Length:
14mm
Length (Nominal):
14mm
Thread Pitch:
0.45
Diameter (Dimension):
2.5mm
Diameter (Nominal):
M2.5
Standards and Specifications:
ISO 7380-1
Coating:
Uncoated
Material Grade:
A4 Stainless Steel
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Style:
Hex Socket Drive
Head Style:
Button Head
Brand:
Aspen Fasteners(r)
System of Measurement:
Metric
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • Button head cap screws have a wider bearing surface and maintain a low head profile.
    • An internal hex socket drive is also known as an Allen drive.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M2.5
    • Thread Pitch: 0.45
    • Diameter (Dimension): 2.5mm
    • Length (Nominal): 14mm
    • Thread Length: 14mm
    • Recess Size: 1.5mm
    • Head Diameter: 4.6mm
    • Head Height, Overall: 1.5mm
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Button Head
    • Drive Style: Hex Socket Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: ISO 7380-1
    Product UPC Code:
    698435883963
