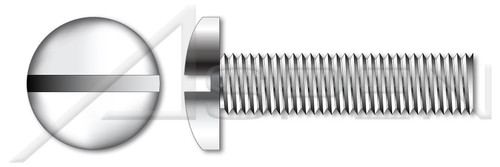

M2.5-0.45 X 16mm DIN 85 / ISO 1580, Metric, Machine Screws, Pan Slot Drive, Full Thread, A2 Stainless Steel

PART NUMBER:
ME141-25045X16
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Pan head screws are also known as raised cheese head screws.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M2.5
  • Thread Pitch: 0.45
  • Diameter (Dimension): 2.5mm
  • Length (Nominal): 16mm
  • Thread Length (Nominal): 16mm
  • Head Diameter: 5mm
  • Head Diameter (Minimum): 4.7mm
  • Head Diameter (Maximum): 5mm
  • Head Height, Overall: 1.5mm
  • Head Height, Overall (Minimum): 1.36mm
  • Head Height, Overall (Maximum): 1.5mm
  • Slot Depth (Nominal): 0.6mm
  • Slot Width (Nominal): 0.6mm
  • Slot Width (Minimum): 0.66mm
  • Slot Width (Maximum): 0.8mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Pan Head
  • Drive Style: Slotted Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 85 / ISO 1580
Brand:
Aspen Fasteners
Category:
Machine Screws
Coating:
Uncoated
Diameter (Dimension):
2.5mm
Diameter (Nominal):
M2.5
Drive Style:
Slotted Drive
Head Diameter:
5mm
Head Diameter (Maximum):
5mm
Head Diameter (Minimum):
4.7mm
Head Height, Overall:
1.5mm
Head Height, Overall (Maximum):
1.5mm
Head Height, Overall (Minimum):
1.36mm
Head Style:
Pan Head
Length (Nominal):
16mm
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Order:
Machine Thread Fasteners
Origin:
Origin Undefined
POS:
ME141-25045X16-00400,ME141-25045X16-000400,ME141-25045X16-003000
Product Class:
Externally Threaded Fasteners
Slot Depth (Nominal):
0.6mm
Slot Width (Maximum):
0.8mm
Slot Width (Minimum):
0.66mm
Slot Width (Nominal):
0.6mm
Standards and Specifications:
DIN 85 / ISO 1580
System of Measurement:
Metric
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Thread Length (Nominal):
16mm
Thread Pitch:
0.45
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME141-25045X16.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME141-25045X16
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product64/ME141-25045X16.PDF
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • Pan head screws are also known as raised cheese head screws.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M2.5
    • Thread Pitch: 0.45
    • Diameter (Dimension): 2.5mm
    • Length (Nominal): 16mm
    • Thread Length (Nominal): 16mm
    • Head Diameter: 5mm
    • Head Diameter (Minimum): 4.7mm
    • Head Diameter (Maximum): 5mm
    • Head Height, Overall: 1.5mm
    • Head Height, Overall (Minimum): 1.36mm
    • Head Height, Overall (Maximum): 1.5mm
    • Slot Depth (Nominal): 0.6mm
    • Slot Width (Nominal): 0.6mm
    • Slot Width (Minimum): 0.66mm
    • Slot Width (Maximum): 0.8mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Pan Head
    • Drive Style: Slotted Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 85 / ISO 1580
  • 3D Product View
