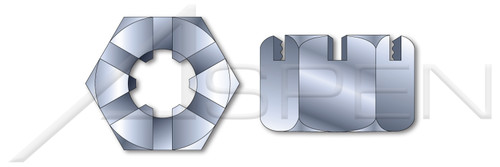

- Also known as castellated nuts. Functionally interchangeable with slotted castle nuts.
- Lock the nut to a mated bolt by using a pin or wire threaded through the bolt and slots on the nut.
- Diameter (Nominal): M20
- Thread Pitch: 2.5
- Diameter (Dimension): 20mm
- Thread Length: 22mm
- Across Flats (Basic): 30mm
- Across Flats (Minimum): 29.16mm
- Across Flats (Maximum): 30mm
- Height (Basic): 22mm
- Height (Minimum): 21.16mm
- Height (Maximum): 22mm
- Slot Depth (Nominal): 6mm
- Slot Depth (Minimum): 5.16mm
- Slot Depth (Maximum): 6.43mm
- Slot Width (Minimum): 4.5mm
- Slot Width (Maximum): 4.8mm
- Product Class: Internally Threaded Fasteners
- Order: Nuts
- Category: Slotted Hex Thick Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 935 / ISO 7035
