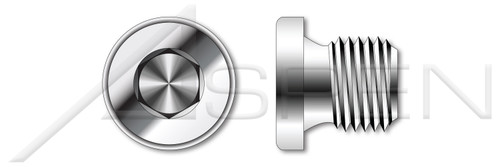

- Threaded pipe plugs are designed to close the ends of internally threaded pipes and fittings.
- Also known as Threaded Pipe Fittings or Threaded Screw Plugs.
- An internal hex socket drive is also known as an Allen drive.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M22
- Thread Pitch: 1.5
- Diameter (Dimension): 22mm
- Length (Nominal): 18mm
- Thread Length (Nominal): 14mm
- Drive Size: 10mm
- Head Diameter: 27mm
- Head Diameter (Minimum): 26.48mm
- Head Diameter (Maximum): 27mm
- Head Height, Overall: 4mm
- Head Height, Overall (Minimum): 4mm
- Head Height, Overall (Maximum): 4.5mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Pipe Plugs
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Drive Style: Hex Socket Drive
- Threading: Straight Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 908
Product UPC Code:
692559619866
- Head Height, Overall (Maximum):
- 4.5mm
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Stainless Steel
- Shop by Application:
- Socket Products
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Pipe Plugs
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners(r)
- Drive Style:
- Hex Socket Drive
- Threading:
- Straight Thread
- Thread Direction:
- Right-Hand Thread
- Material:
- Stainless Steel
- Material Grade:
- A4 Stainless Steel
- Coating:
- Uncoated
- Standards and Specifications:
- DIN 908
- Diameter (Nominal):
- M22
- Diameter (Dimension):
- 22mm
- Thread Pitch:
- 1.5
- Length (Nominal):
- 18mm
- Thread Length (Nominal):
- 14mm
- Recess Size:
- 10mm
- Head Diameter:
- 27mm
- Head Diameter (Minimum):
- 26.48mm
- Head Diameter (Maximum):
- 27mm
- Head Height, Overall:
- 4mm
- Head Height, Overall (Minimum):
- 4mm
