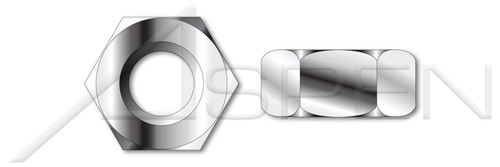

M24-1.5 DIN 934 / ISO 4032, Metric, Hex Finished Nuts, A2 Stainless Steel

PART NUMBER:
ME013-2415
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Hex finished nuts are considered the most commonly used hex nuts.
  • DIN 934 hex nuts are the most commonly used metric hex nuts.
  • Also known as regular hex nuts.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M24
  • Thread Pitch: 1.5
  • Diameter (Dimension): 24mm
  • Thread Length (Nominal): 19mm
  • Across Flats (Basic): 36mm
  • Height (Basic): 19mm
PRODUCT ATTRIBUTES
  • Category: Hex Finished Nuts
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 934 / ISO 4032
System of Measurement:
Metric
Order:
Nuts
Product Class:
Internally Threaded Fasteners
Thread Pitch:
1.5
Thread Direction:
Right-Hand Thread
Across Flats (Basic):
36mm
Thread Length (Nominal):
19mm
Diameter (Dimension):
24mm
POS:
ME013-2415-00005,ME013-2415X19X36-000050
Diameter (Nominal):
M24
Height (Basic):
19mm
Thread Length:
Full Thread
Brand:
Aspen Fasteners(r)
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Category:
Hex Finished Nuts
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product37/ME013-2415.PDF
Shop by System of Measurement:
Metric
Standards and Specifications:
DIN 934 / ISO 4032
Drive Style:
External Hex Drive
Coating:
Uncoated
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME013-2415.zip
Shop by Material:
Stainless Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME013-2415
  • Description
    • Hex finished nuts are considered the most commonly used hex nuts.
    • DIN 934 hex nuts are the most commonly used metric hex nuts.
    • Also known as regular hex nuts.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M24
    • Thread Pitch: 1.5
    • Diameter (Dimension): 24mm
    • Thread Length (Nominal): 19mm
    • Across Flats (Basic): 36mm
    • Height (Basic): 19mm
    PRODUCT ATTRIBUTES
    • Category: Hex Finished Nuts
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 934 / ISO 4032
  • 3D Product View

Contact us for availability information on part number ME013-2415. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
