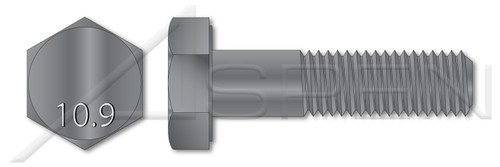

- Heavy hex structural bolts are designed to withstand the load of a steel-to-steel connection.
- Commonly used in structural steel joint in construction and building applications.
- Class 10.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,040/mm-2 (Mpa).
- The washer face under the head provides a precision bearing surface.
- The chamfered point improves engagement with a nut or pre-tapped hole.
- Diameter (Nominal): M24
- Thread Pitch: 3.0
- Diameter (Dimension): 24mm
- Diameter (Minimum): 23.16mm
- Diameter (Maximum): 24.84mm
- Length (Nominal): 210mm
- Thread Length (Nominal): 37mm
- Across Flats (Basic): 41mm
- Across Flats (Minimum): 40mm
- Across Flats (Maximum): 41mm
- Head Height, Overall: 15mm
- Head Height, Overall (Minimum): 14.1mm
- Head Height, Overall (Maximum): 15.9mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Hex Bolts, Heavy Structural
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Hex Head
- Head Style Detail: Washer Face
- Drive Style: External Hex Drive
- Pitch: Coarse Thread
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Point: Chamfered Point
- Material: Steel
- Material Grade: Class 10.9 Steel
- Material Processes: Hardened
- Coating: Uncoated
- Standards and Specifications: DIN 6914 / ISO 7412 / EN 14399-4
