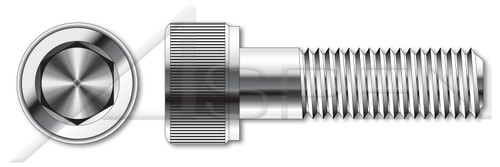

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M24
- Thread Pitch: 3.0
- Diameter (Dimension): 24mm
- Diameter (Minimum): 23.67mm
- Diameter (Maximum): 24mm
- Length (Nominal): 240mm
- Thread Length: 60mm
- Drive Size: 19mm
- Head Diameter: 36mm
- Head Diameter (Minimum): 35.61mm
- Head Diameter (Maximum): 36mm
- Head Height, Overall: 24mm
- Head Height, Overall (Minimum): 23.48mm
- Head Height, Overall (Maximum): 24mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 912 / ISO 4762
Product UPC Code:
692559593371
- Thread Pitch:
- 3.0
- Length (Nominal):
- 240mm
- Thread Length:
- 60mm
- Recess Size:
- 19mm
- Shop by Material:
- Stainless Steel
- Shop by Application:
- Socket Products
- Product Class:
- Externally Threaded Fasteners
- Shop by System of Measurement:
- Metric
- Head Diameter:
- 36mm
- Head Diameter (Minimum):
- 35.61mm
- Head Diameter (Maximum):
- 36mm
- Standards and Specifications:
- DIN 912 / ISO 4762
- Diameter (Nominal):
- M24
- Diameter (Dimension):
- 24mm
- Thread Direction:
- Right-Hand Thread
- Material:
- Stainless Steel
- Head Height, Overall:
- 24mm
- Head Height, Overall (Minimum):
- 23.48mm
- Head Height, Overall (Maximum):
- 24mm
- Material Grade:
- A2 Stainless Steel
- Coating:
- Uncoated
- Drive Style:
- Hex Socket Drive
- Head Style:
- Cylindrical Head
- Brand:
- Aspen Fasteners(r)
- System of Measurement:
- Metric
- Category:
- Socket Head Cap Screws
- Order:
- Machine Thread Fasteners
- Diameter (Minimum):
- 23.67mm
- Diameter (Maximum):
- 24mm
