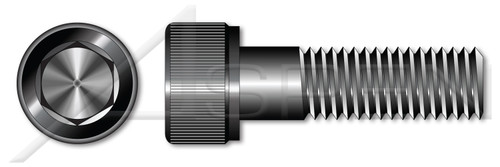

- Superior quality parts by Holo-Krome, made in the U.S.A.
- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- Class 12.9 steel is an alloy steel, quenched and tempered, with a minimum tensile strength of 1,220/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M24
- Thread Pitch: 3.0
- Diameter (Dimension): 24mm
- Length (Nominal): 65mm
- Drive Size: 19mm
PRODUCT ATTRIBUTES- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Holo-Krome®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Threading: Thread Class ANSI B1.13M
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 12.9 Steel
- Material Processes: Heat Treated
- Coating: Oxidized
- Coating Color: Black
- Origin: Made in U.S.A.
- Standards and Specifications: ISO 4762
Product UPC Code:
692559874197
- Product Class:
- Externally Threaded Fasteners
- Shop by System of Measurement:
- Metric
- Recess Size:
- 19mm
- Length (Nominal):
- 65mm
- Thread Pitch:
- 3.0
- Diameter (Dimension):
- 24mm
- Diameter (Nominal):
- M24
- Standards and Specifications:
- ISO 4762
- Origin:
- Made in U.S.A.
- Coating Color:
- Black
- Coating:
- Oxidized
- Material Processes:
- Heat Treated
- Shop by Material:
- Steel
- Material Grade:
- Class 12.9 Steel
- Shop by Application:
- Socket Products
- Material:
- Steel
- Thread Direction:
- Right-Hand Thread
- Threading:
- Thread Class ANSI B1.13M
- Drive Style:
- Hex Socket Drive
- Head Style:
- Cylindrical Head
- Brand:
- Holo-Krome(r)
- System of Measurement:
- Metric
- Category:
- Socket Head Cap Screws
- Order:
- Machine Thread Fasteners
