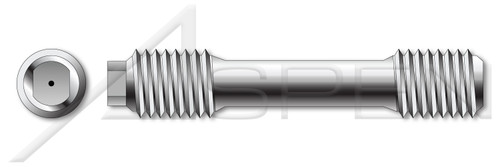

M27-3.0 X 160mm DIN 2510 Type L, Metric, Studs, Double-Ended, Waisted Shank, 1.7709 21CrMoV5-7 Steel

PART NUMBER:
ME714-2730X160-000002
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • MEASURING THIS STUD: The nominal length includes both threaded ends plus the unthreaded body length.
  • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
  • Double-ended studs are used to join parts when a bolt or screw head is not an option.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M27
  • Thread Pitch: 3.0
  • Diameter (Dimension): 27mm
  • Length (Nominal): 160mm
  • Length Overall: 166mm
  • Screw-End Thread Length: 35mm
  • Thread Length (Nominal): 35mm
  • Body Diameter: 20.5mm
  • Body Length (Nominal): 90mm
  • Point Length: 6mm
  • Point Width: 13mm
  • Point Height: 18mm
  • Hole Diameter (Nominal): 1.6mm
PRODUCT ATTRIBUTES
  • Category: Studs, Double-Ended
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Waisted Shank
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: 1.7709 21CrMoV5-7 Steel
  • Material Processes: Hardened
  • Coating: Uncoated
  • Standards and Specifications: DIN 2510 Type L
Length Overall:
166mm
Brand:
Aspen Fasteners
Body Diameter:
20.5mm
Point Height:
18mm
Diameter (Dimension):
27mm
System of Measurement:
Metric
Material:
Steel
Material Grade:
1.7709 21CrMoV5-7 Steel
Screw-End Thread Length:
35mm
Coating:
Uncoated
Form and Design:
Waisted Shank
Thread Length (Nominal):
35mm
Diameter (Nominal):
M27
Point Width:
13mm
Material Processes:
Hardened
Category:
Studs, Double-Ended
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME714-2730X160.zip
Order:
Machine Thread Fasteners
POS:
ME714-2730X160-000002
Hole Diameter:
1.6mm
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product96/ME714-2730X160.PDF
Product Class:
Externally Threaded Fasteners
Thread Direction:
Right-Hand Thread
Standards and Specifications:
DIN 2510 Type L
Thread Pitch:
3.0
Point Length:
6mm
Length (Nominal):
160mm
Body Length (Nominal):
90mm
Shop by Material:
Steel
Shop by System of Measurement:
Metric
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME714-2730X160
  • Description
    • MEASURING THIS STUD: The nominal length includes both threaded ends plus the unthreaded body length.
    • MEASURING THIS STUD: The overall length is the total length of the entire stud from end-to-end.
    • Double-ended studs are used to join parts when a bolt or screw head is not an option.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M27
    • Thread Pitch: 3.0
    • Diameter (Dimension): 27mm
    • Length (Nominal): 160mm
    • Length Overall: 166mm
    • Screw-End Thread Length: 35mm
    • Thread Length (Nominal): 35mm
    • Body Diameter: 20.5mm
    • Body Length (Nominal): 90mm
    • Point Length: 6mm
    • Point Width: 13mm
    • Point Height: 18mm
    • Hole Diameter (Nominal): 1.6mm
    PRODUCT ATTRIBUTES
    • Category: Studs, Double-Ended
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Waisted Shank
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: 1.7709 21CrMoV5-7 Steel
    • Material Processes: Hardened
    • Coating: Uncoated
    • Standards and Specifications: DIN 2510 Type L
