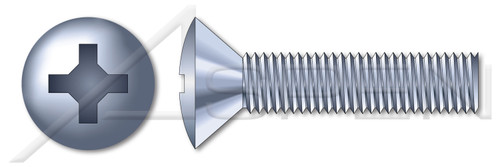

M3-0.5 X 12mm DIN 966 / ISO 7047, Metric, Machine Screws, Oval Phillips Drive, Full Thread, Class 4.8 Steel, Zinc Plated

PART NUMBER:
ME204-305X12-02100
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Oval countersunk head screws are also known as raised countersunk head screws.
  • Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M3
  • Thread Pitch: 0.5
  • Diameter (Dimension): 3mm
  • Length (Nominal): 12mm
  • Thread Length (Nominal): 10.35mm
  • Drive Recess Size: #1
  • Drive Recess Width: 3.1mm
  • Drive Recess Depth (Minimum): 1.7mm
  • Drive Recess Depth (Maximum): 2mm
  • Head Diameter: 5.6mm
  • Head Diameter (Minimum): 5.3mm
  • Head Diameter (Maximum): 5.6mm
  • Head Height, Overall: 1.65mm
  • Head Dome Height: 0.75mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Oval Countersunk Head
  • Head Style Detail: 90 Degree Countersink
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 4.8 Steel
  • Coating: Zinc Plated
  • Coating Color: Clear
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 966 / ISO 7047
Product UPC Code:
698435210615
Brand:
Aspen Fasteners
Category:
Machine Screws
Coating:
Zinc Plated
Coating Color:
Clear
Diameter (Dimension):
3mm
Diameter (Nominal):
M3
Drive Detail:
Phillips Type H
Drive Recess Size:
#1
Drive Recess Width:
3.1mm
Drive Style:
Cruciform Recess Drive
Head Diameter:
5.6mm
Head Diameter (Maximum):
5.6mm
Head Diameter (Minimum):
5.3mm
Head Dome Height:
0.75mm
Head Height, Overall:
1.65mm
Head Style:
Oval Countersunk Head
Head Style Detail:
90 Degree Countersink
Length (Nominal):
12mm
Material:
Steel
Material Grade:
Class 4.8 Steel
Order:
Machine Thread Fasteners
Origin:
Origin Undefined
POS:
ME204-305X12-02100
Product Class:
Externally Threaded Fasteners
Standards and Specifications:
DIN 966 / ISO 7047
System of Measurement:
Metric
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Thread Length (Nominal):
10.35mm
Thread Pitch:
0.5
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME204-305X12.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME204-305X12
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product65/ME204-305X12.PDF
Shop by Material:
Steel
Shop by System of Measurement:
Metric
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • Oval countersunk head screws are also known as raised countersunk head screws.
    • Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M3
    • Thread Pitch: 0.5
    • Diameter (Dimension): 3mm
    • Length (Nominal): 12mm
    • Thread Length (Nominal): 10.35mm
    • Drive Recess Size: #1
    • Drive Recess Width: 3.1mm
    • Drive Recess Depth (Minimum): 1.7mm
    • Drive Recess Depth (Maximum): 2mm
    • Head Diameter: 5.6mm
    • Head Diameter (Minimum): 5.3mm
    • Head Diameter (Maximum): 5.6mm
    • Head Height, Overall: 1.65mm
    • Head Dome Height: 0.75mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Oval Countersunk Head
    • Head Style Detail: 90 Degree Countersink
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 4.8 Steel
    • Coating: Zinc Plated
    • Coating Color: Clear
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 966 / ISO 7047
    Product UPC Code:
    698435210615
  • 3D Product View
