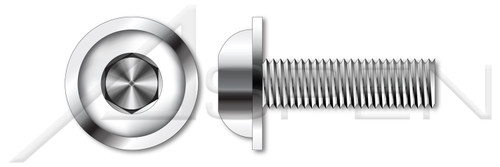

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flange acts like a built-in washer offering a larger bearing surface for load distribution.
- An internal hex socket drive is also known as an Allen drive.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M3
- Thread Pitch: 0.5
- Diameter (Dimension): 3mm
- Diameter (Minimum): 2.86mm
- Diameter (Maximum): 3mm
- Length (Nominal): 14mm
- Thread Length: 14mm
- Recess Size: 2mm
- Head Diameter: 5.2mm
- Head Diameter (Minimum): 4.9mm
- Head Diameter (Maximum): 5.2mm
- Head Height, Overall: 1.65mm
- Head Height, Overall (Minimum): 1.4mm
- Head Height, Overall (Maximum): 1.65mm
- Flange Diameter: 6.9mm
- Flange Diameter (Minimum): 6.32mm
- Flange Diameter (Maximum): 6.9mm
- Flange Thickness: 0.7mm
- Flange Thickness (Minimum): 0.55mm
- Flange Thickness (Maximum): 0.7mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Button Head with Flange
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: ISO 7380-2
