- ISO 14583 formerly referred to the DIN 7985 specification.

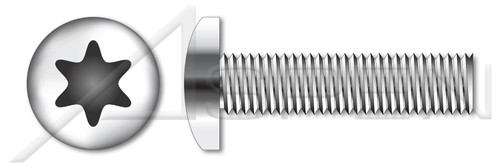

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- A 6-lobe recess is also known as a hexalobular internal drive.
- Pan head screws are also known as raised cheese head screws.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M3
- Thread Pitch: 0.5
- Diameter (Dimension): 3mm
- Length (Nominal): 16mm
- Thread Length: 16mm
- Recess Size: T10
- Head Diameter: 5.6mm
- Head Diameter (Minimum): 5.3mm
- Head Diameter (Maximum): 5.6mm
- Head Height, Overall: 2.4mm
- Head Height, Overall (Minimum): 2.26mm
- Head Height, Overall (Maximum): 2.4mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: 6Lobe Drive
- Drive Detail: Torx® Generic Alternative
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: ISO 14583
Product UPC Code:
698435871397
- Category:
- Machine Screws
- Head Diameter:
- 5.6mm
- Recess Size:
- T10
- Thread Length:
- 16mm
- Length (Nominal):
- 16mm
- Thread Pitch:
- 0.5
- Diameter (Dimension):
- 3mm
- Diameter (Nominal):
- M3
- Standards and Specifications:
- ISO 14583
- Coating:
- Uncoated
- Material Grade:
- A4 Stainless Steel
- Material:
- Stainless Steel
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Drive Detail:
- Torx(r) Generic Alternative
- Drive Style:
- 6Lobe Drive
- Head Style:
- Pan Head
- Brand:
- Aspen Fasteners
- System of Measurement:
- Metric
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
- Shop by Material:
- Stainless Steel
- Shop by System of Measurement:
- Metric
- Head Height, Overall (Maximum):
- 2.4mm
- Head Height, Overall (Minimum):
- 2.26mm
- Head Height, Overall:
- 2.4mm
- Head Diameter (Maximum):
- 5.6mm
- Head Diameter (Minimum):
- 5.3mm
