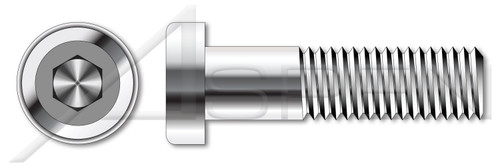

M3-0.5 X 18mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A4 Stainless Steel

PART NUMBER:
ME493-305X18-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3
  • Thread Pitch: 0.5
  • Diameter (Dimension): 3mm
  • Diameter (Minimum): 2.86mm
  • Diameter (Maximum): 3mm
  • Length (Nominal): 18mm
  • Thread Length: 12mm
  • Recess Size: 2mm
  • Head Diameter: 5.5mm
  • Head Diameter (Minimum): 5.32mm
  • Head Diameter (Maximum): 5.5mm
  • Head Height, Overall: 2mm
  • Head Height, Overall (Minimum): 1.86mm
  • Head Height, Overall (Maximum): 2mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 7984
Product UPC Code:
692559668161
Recess Size:
2mm
Thread Length:
12mm
Length (Nominal):
18mm
Thread Pitch:
0.5
Diameter (Maximum):
3mm
Diameter (Minimum):
2.86mm
Diameter (Dimension):
3mm
Diameter (Nominal):
M3
Standards and Specifications:
DIN 7984
Coating:
Uncoated
Material Grade:
A4 Stainless Steel
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Product Class:
Externally Threaded Fasteners
Shop by Application:
Socket Products
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
Drive Style:
Hex Socket Drive
Head Style:
Low Cylindrical Head
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Head Height, Overall (Maximum):
2mm
Head Height, Overall (Minimum):
1.86mm
Head Height, Overall:
2mm
Head Diameter (Maximum):
5.5mm
Head Diameter (Minimum):
5.32mm
Head Diameter:
5.5mm
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
    • An internal hex socket drive is also known as an Allen drive.
    • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M3
    • Thread Pitch: 0.5
    • Diameter (Dimension): 3mm
    • Diameter (Minimum): 2.86mm
    • Diameter (Maximum): 3mm
    • Length (Nominal): 18mm
    • Thread Length: 12mm
    • Recess Size: 2mm
    • Head Diameter: 5.5mm
    • Head Diameter (Minimum): 5.32mm
    • Head Diameter (Maximum): 5.5mm
    • Head Height, Overall: 2mm
    • Head Height, Overall (Minimum): 1.86mm
    • Head Height, Overall (Maximum): 2mm
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Low Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A4 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 7984
    Product UPC Code:
    692559668161

Contact us for availability information on part number ME493-305X18-001000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
