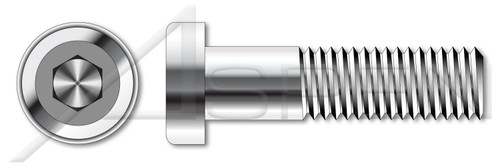

M3-0.5 X 3mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A2 Stainless Steel

$277.42
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME340-305X3-001000
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3
  • Thread Pitch: 0.5
  • Diameter (Dimension): 3mm
  • Diameter (Minimum): 2.86mm
  • Diameter (Maximum): 3mm
  • Length (Nominal): 3mm
  • Thread Length: 12mm
  • Recess Size: 2mm
  • Head Diameter: 5.5mm
  • Head Diameter (Minimum): 5.32mm
  • Head Diameter (Maximum): 5.5mm
  • Head Height, Overall: 2mm
  • Head Height, Overall (Minimum): 1.86mm
  • Head Height, Overall (Maximum): 2mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 7984
