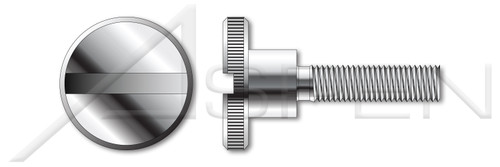

M3-0.5 X 4mm DIN 465, Metric, Thumb Screws, Knurled Flat Head, High Type, Slotted Drive, AISI 303 Stainless Steel (18-8)

PART NUMBER:
ME547-305X4-000050
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • A thumb screw is designed to be turned using a thumb and finger.
  • Knurls on the side of the head improves the grip.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3
  • Thread Pitch: 0.5
  • Diameter (Dimension): 3mm
  • Length (Nominal): 4mm
  • Thread Length: 4mm
  • Head Diameter: 12mm
  • Head Diameter (Minimum): 11.65mm
  • Head Diameter (Maximum): 12.35mm
  • Head Height, Overall: 2.5mm
  • Head Height, Overall (Minimum): 2.25mm
  • Head Height, Overall (Maximum): 2.5mm
  • Shoulder Diameter: 6mm
  • Shoulder Diameter (Minimum): 5.7mm
  • Shoulder Diameter (Maximum): 6mm
  • Shoulder Length: 5.25mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Thumb Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Knurled Flat Head
  • Head Style Detail: High Type
  • Drive Style: Slotted Thumb Drive
  • Pitch: Coarse Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: AISI 303 Stainless Steel (18-8)
  • Coating: Uncoated
  • Standards and Specifications: DIN 465
Product UPC Code:
698435892248
Standards and Specifications:
DIN 465
Diameter (Nominal):
M3
Diameter (Dimension):
3mm
Thread Pitch:
0.5
Length (Nominal):
4mm
Thread Length:
4mm
Head Diameter:
12mm
Head Diameter (Minimum):
11.65mm
Head Diameter (Maximum):
12.35mm
Shoulder Diameter (Minimum):
5.7mm
Head Height, Overall:
2.5mm
Head Height, Overall (Minimum):
2.25mm
Head Height, Overall (Maximum):
2.5mm
Shoulder Diameter:
6mm
Shoulder Length:
5.25mm
Shoulder Diameter (Maximum):
6mm
Category:
Thumb Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
System of Measurement:
Metric
Brand:
Aspen Fasteners(r)
Head Style:
Knurled Flat Head
Head Style Detail:
High Type
Drive Style:
Slotted Thumb Drive
Pitch:
Coarse Thread
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
AISI 303 Stainless Steel (18-8)
Coating:
Uncoated
  • Description
    • A thumb screw is designed to be turned using a thumb and finger.
    • Knurls on the side of the head improves the grip.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M3
    • Thread Pitch: 0.5
    • Diameter (Dimension): 3mm
    • Length (Nominal): 4mm
    • Thread Length: 4mm
    • Head Diameter: 12mm
    • Head Diameter (Minimum): 11.65mm
    • Head Diameter (Maximum): 12.35mm
    • Head Height, Overall: 2.5mm
    • Head Height, Overall (Minimum): 2.25mm
    • Head Height, Overall (Maximum): 2.5mm
    • Shoulder Diameter: 6mm
    • Shoulder Diameter (Minimum): 5.7mm
    • Shoulder Diameter (Maximum): 6mm
    • Shoulder Length: 5.25mm
    • Product Class: Externally Threaded Fasteners
    • Order: Machine Thread Fasteners
    • Category: Thumb Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Knurled Flat Head
    • Head Style Detail: High Type
    • Drive Style: Slotted Thumb Drive
    • Pitch: Coarse Thread
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: AISI 303 Stainless Steel (18-8)
    • Coating: Uncoated
    • Standards and Specifications: DIN 465
    Product UPC Code:
    698435892248

Contact us for availability information on part number ME547-305X4-000050. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
