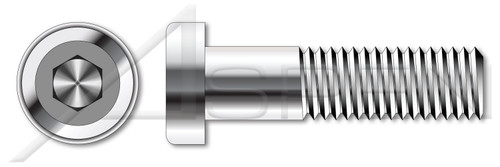

M3-0.5 X 4mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, A2 Stainless Steel

$310.20
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME340-305X4-002000
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3
  • Thread Pitch: 0.5
  • Diameter (Dimension): 3mm
  • Diameter (Minimum): 2.86mm
  • Diameter (Maximum): 3mm
  • Length (Nominal): 4mm
  • Thread Length: 4mm
  • Recess Size: 2mm
  • Head Diameter: 5.5mm
  • Head Diameter (Minimum): 5.32mm
  • Head Diameter (Maximum): 5.5mm
  • Head Height, Overall: 2mm
  • Head Height, Overall (Minimum): 1.86mm
  • Head Height, Overall (Maximum): 2mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 7984
Product UPC Code:
692559633107
Buy in Bulk and Save
Diameter (Dimension):
3mm
Category:
Socket Head Cap Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners(r)
Head Style:
Low Cylindrical Head
Drive Style:
Hex Socket Drive
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Coating:
Uncoated
Standards and Specifications:
DIN 7984
Diameter (Nominal):
M3
Diameter (Minimum):
2.86mm
Diameter (Maximum):
3mm
Thread Pitch:
0.5
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Head Height, Overall (Maximum):
2mm
Length (Nominal):
4mm
Head Height, Overall (Minimum):
1.86mm
Head Height, Overall:
2mm
Thread Length:
4mm
Recess Size:
2mm
Head Diameter:
5.5mm
Head Diameter (Minimum):
5.32mm
Head Diameter (Maximum):
5.5mm

Contact us for availability information on part number ME340-305X4-002000. Please chat with us, call us, or use the form below. Our customer support team will find the best delivery options for you.
