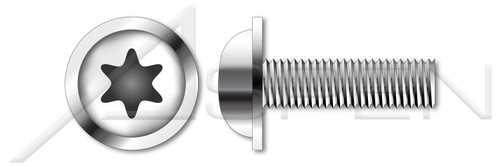

M3-0.5 X 4mm ISO 7380-2, Metric, Flanged Button Head Cap Screws, 6Lobe Torx(r) Drive, Full Thread, A2 Stainless Steel

$255.49
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME483-305X4-003000
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3
  • Thread Pitch: 0.5
  • Diameter (Dimension): 3mm
  • Diameter (Minimum): 2.86mm
  • Diameter (Maximum): 3mm
  • Length (Nominal): 4mm
  • Thread Length: 4mm
  • Recess Size: T10
  • Head Diameter: 5.2mm
  • Head Diameter (Minimum): 4.9mm
  • Head Diameter (Maximum): 5.2mm
  • Head Height, Overall: 1.65mm
  • Head Height, Overall (Minimum): 1.4mm
  • Head Height, Overall (Maximum): 1.65mm
  • Flange Diameter: 6.9mm
  • Flange Diameter (Minimum): 6.32mm
  • Flange Diameter (Maximum): 6.9mm
  • Flange Thickness: 0.7mm
  • Flange Thickness (Minimum): 0.55mm
  • Flange Thickness (Maximum): 0.7mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Button Head with Flange
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ISO 7380-2
Product UPC Code:
692559663586
Buy in Bulk and Save
Head Height, Overall (Minimum):
1.4mm
Flange Diameter (Maximum):
6.9mm
Flange Diameter (Minimum):
6.32mm
Head Height, Overall:
1.65mm
Head Diameter (Maximum):
5.2mm
Flange Thickness:
0.7mm
Flange Thickness (Minimum):
0.55mm
Flange Thickness (Maximum):
0.7mm
Head Diameter (Minimum):
4.9mm
Head Diameter:
5.2mm
Recess Size:
T10
Thread Length:
4mm
Length (Nominal):
4mm
Thread Pitch:
0.5
Diameter (Maximum):
3mm
Diameter (Minimum):
2.86mm
Diameter (Dimension):
3mm
Diameter (Nominal):
M3
Standards and Specifications:
ISO 7380-2
Coating:
Uncoated
Material Grade:
A2 Stainless Steel
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Detail:
Torx(r) Generic Alternative
Drive Style:
6Lobe Drive
Head Style:
Button Head with Flange
Brand:
Aspen Fasteners(r)
System of Measurement:
Metric
Category:
Socket Head Cap Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
Flange Diameter:
6.9mm
Head Height, Overall (Maximum):
1.65mm

Contact us for availability information on part number ME483-305X4-003000. Please chat with us, call us, or use the form below. Our customer support team will find the best delivery options for you.
