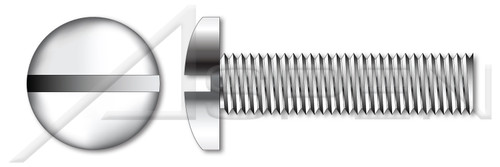

M3.5-0.6 X 6mm DIN 85 / ISO 1580, Metric, Machine Screws, Pan Slot Drive, Full Thread, A4 Stainless Steel

$255.42
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME142-3506X6-001000
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • Pan head screws are also known as raised cheese head screws.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3.5
  • Thread Pitch: 0.6
  • Diameter (Dimension): 3.5mm
  • Length (Nominal): 6mm
  • Thread Length: 6mm
  • Head Diameter: 7mm
  • Head Diameter (Minimum): 6.64mm
  • Head Diameter (Maximum): 7mm
  • Head Height, Overall: 2.1mm
  • Head Height, Overall (Minimum): 1.96mm
  • Head Height, Overall (Maximum): 2.1mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Pan Head
  • Drive Style: Slotted Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 85 / ISO 1580
Product UPC Code:
698435859067
Buy in Bulk and Save
Head Diameter (Maximum):
7mm
Head Height, Overall (Maximum):
2.1mm
Head Height, Overall (Minimum):
1.96mm
Head Height, Overall:
2.1mm
Head Diameter (Minimum):
6.64mm
Head Diameter:
7mm
Thread Length:
6mm
Length (Nominal):
6mm
Thread Pitch:
0.6
Diameter (Dimension):
3.5mm
Diameter (Nominal):
M3.5
Standards and Specifications:
DIN 85 / ISO 1580
Coating:
Uncoated
Material Grade:
A4 Stainless Steel
Material:
Stainless Steel
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Style:
Slotted Drive
Head Style:
Pan Head
Brand:
Aspen Fasteners(r)
System of Measurement:
Metric
Category:
Machine Screws
Order:
Machine Thread Fasteners
Product Class:
Externally Threaded Fasteners
