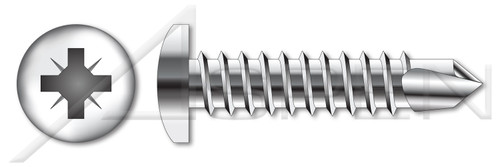

M3.5 X 16mm DIN 7504 Type M, Metric, Self-Drilling Screws, Pan Pozidriv Alternative Drive, A2 Stainless Steel

$293.48
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME441-35X16-002000
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
  • Pan head screws are also known as raised cheese head screws.
  • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3.5
  • Diameter (Dimension): 3.5mm
  • Length (Nominal): 16mm
  • Recess Size: #2
  • Head Diameter: 6.9mm
  • Head Height, Overall: 2.6mm
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Self-Drilling Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Pan Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Pozidriv Type Z
  • Thread Direction: Right-Hand Thread
  • Point: Self-Drilling Point
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 7504 Type M
Product UPC Code:
692559642406
Buy in Bulk and Save
Diameter (Nominal):
M3.5
Stainless Steel:
Stainless Steel
Product Class:
Externally Threaded Fasteners
Order:
Thread Cutting Fasteners
Category:
Self-Drilling Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners(r)
Head Style:
Pan Head
Drive Style:
Cruciform Recess Drive
Drive Detail:
Pozidriv Type Z
Thread Direction:
Right-Hand Thread
Point:
Self-Drilling Point
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Coating:
Uncoated
Standards and Specifications:
DIN 7504 Type M
Diameter (Dimension):
3.5mm
Length (Nominal):
16mm
Recess Size:
#2
Head Diameter:
6.9mm
Head Height, Overall:
2.6mm

Contact us for availability information on part number ME441-35X16-002000. Please chat with us, call us, or use the form below. Our customer support team will find the best delivery options for you.
