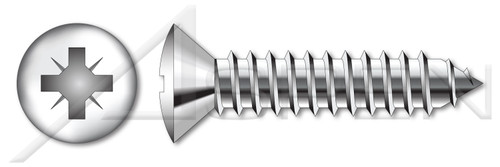

M3.5 X 16mm DIN 7983 / ISO 7051, Metric, Self-Tapping Sheet Metal Screws, Oval Pozidriv Alternative Drive, Full Thread, A2 Stainless Steel

PART NUMBER:
ME462-35X16-003000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
  • Oval countersunk head screws are also known as raised countersunk head screws.
  • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3.5
  • Diameter (Dimension): 3.5mm
  • Length (Nominal): 16mm
  • Thread Length: 13.9mm
  • Recess Size: #2
  • Head Diameter: 6.8mm
  • Head Height, Overall: 2.1mm
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Self-Tapping Sheet Metal Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Oval Countersunk Head
  • Head Style Detail: 80 Degree Countersink
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Pozidriv Type Z
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 7983 / ISO 7051
Product UPC Code:
692559650890
Standards and Specifications:
DIN 7983 / ISO 7051
Category:
Self-Tapping Sheet Metal Screws
Brand:
Aspen Fasteners
Head Style:
Oval Countersunk Head
Head Style Detail:
80 Degree Countersink
Drive Style:
Cruciform Recess Drive
Drive Detail:
Pozidriv Type Z
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Coating:
Uncoated
Diameter (Nominal):
M3.5
Diameter (Dimension):
3.5mm
Length (Nominal):
16mm
Thread Length:
13.9mm
Recess Size:
#2
Order:
Thread Cutting Fasteners
Head Diameter:
6.8mm
Head Height, Overall:
2.1mm
System of Measurement:
Metric
Product Class:
Externally Threaded Fasteners
Stainless Steel:
Stainless Steel
  • Description
    • Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
    • Oval countersunk head screws are also known as raised countersunk head screws.
    • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M3.5
    • Diameter (Dimension): 3.5mm
    • Length (Nominal): 16mm
    • Thread Length: 13.9mm
    • Recess Size: #2
    • Head Diameter: 6.8mm
    • Head Height, Overall: 2.1mm
    • Product Class: Externally Threaded Fasteners
    • Order: Thread Cutting Fasteners
    • Category: Self-Tapping Sheet Metal Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Oval Countersunk Head
    • Head Style Detail: 80 Degree Countersink
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Pozidriv Type Z
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 7983 / ISO 7051
    Product UPC Code:
    692559650890

Contact us for availability information on part number ME462-35X16-003000. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
