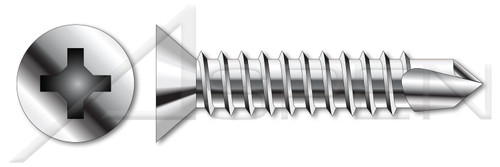

M3.5 X 19mm DIN 7504 Type O, Metric, Self-Drilling Screws, Flat Phillips Drive, A2 Stainless Steel

PART NUMBER:
ME436-35X19-002000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M3.5
  • Diameter (Dimension): 3.5mm
  • Length (Nominal): 19mm
  • Recess Size: #2
  • Head Diameter: 7mm
  • Head Height, Overall: 2.25mm
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Self-Drilling Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 80 Degree Countersink
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Phillips Type H
  • Thread Direction: Right-Hand Thread
  • Point: Self-Drilling Point
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 7504 Type O
Product UPC Code:
692559640518
Stainless Steel:
Stainless Steel
Category:
Self-Drilling Screws
Head Diameter:
7mm
Head Height, Overall:
2.25mm
Material Grade:
A2 Stainless Steel
Head Style Detail:
80 Degree Countersink
Drive Detail:
Phillips Type H
Head Style:
Flat Countersunk Head
Recess Size:
#2
Point:
Self-Drilling Point
Brand:
Aspen Fasteners
Order:
Thread Cutting Fasteners
Drive Style:
Cruciform Recess Drive
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
System of Measurement:
Metric
Length (Nominal):
19mm
Diameter (Dimension):
3.5mm
Diameter (Nominal):
M3.5
Standards and Specifications:
DIN 7504 Type O
Product Class:
Externally Threaded Fasteners
Coating:
Uncoated
  • Description
    • A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M3.5
    • Diameter (Dimension): 3.5mm
    • Length (Nominal): 19mm
    • Recess Size: #2
    • Head Diameter: 7mm
    • Head Height, Overall: 2.25mm
    • Product Class: Externally Threaded Fasteners
    • Order: Thread Cutting Fasteners
    • Category: Self-Drilling Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 80 Degree Countersink
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Phillips Type H
    • Thread Direction: Right-Hand Thread
    • Point: Self-Drilling Point
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 7504 Type O
    Product UPC Code:
    692559640518
