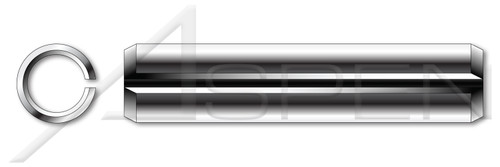

- Spring pins are hollow, cylindrical press fit fasteners with chamfered ends.
- Hollow, headless pins, split along the length, are also known as split pins.
- A spring pin will maintain its position in an assembly by a predetermined spring tension.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M3.5
- Diameter (Dimension): 3.5mm
- Diameter (Minimum): 3.8mm
- Diameter (Maximum): 4mm
- Length (Nominal): 36mm
- Thickness (Nominal): 0.75mm
- Chamfer Diameter: 2.3mm
- Chamfer Length: 0.8mm
- Chamfer Length (Minimum): 0.6mm
- Chamfer Length (Maximum): 0.8mm
PRODUCT ATTRIBUTES- Category: Slotted Spring Pins
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Heavy Duty
- Material: Stainless Steel
- Material Grade: AISI 301 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: ISO 8752
Product UPC Code:
692559515007
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Stainless Steel
- Product Class:
- Pins and Wireforms
- Order:
- Spring Pins
- Category:
- Slotted Spring Pins
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners
- Form and Design:
- Heavy Duty
- Material:
- Stainless Steel
- Material Grade:
- AISI 301 Stainless Steel
- Coating:
- Uncoated
- Standards and Specifications:
- ISO 8752
- Diameter (Nominal):
- M3.5
- Diameter (Dimension):
- 3.5mm
- Diameter (Minimum):
- 3.8mm
- Diameter (Maximum):
- 4mm
- Length (Nominal):
- 36mm
- Thickness (Nominal):
- 0.75mm
- Chamfer Length:
- 0.8mm
- Chamfer Length (Minimum):
- 0.6mm
- Chamfer Length (Maximum):
- 0.8mm
- Chamfer Diameter:
- 2.3mm
