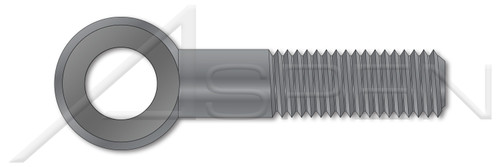

- Precision swing eye bolts are driveless fasteners with a hole in the head.
- Precision machined unthreaded round hole called the "eye" allows for pin or bearing to be inserted.
- Can be used as a hinge point.
- Diameter (Nominal): M30
- Thread Pitch: 3.5
- Diameter (Dimension): 30mm
- Length (Nominal): 150mm
- Thread Length: 46mm
- Inside Diameter (Nominal): 24mm
- Inside Diameter (Minimum): 24mm
- Inside Diameter (Maximum): 24.052mm
- Head Diameter: 50mm
- Head Diameter (Minimum): 49.38mm
- Head Diameter (Maximum): 50mm
- Head Height, Overall: 50mm
- Head Height, Overall (Minimum): 49.38mm
- Head Height, Overall (Maximum): 50mm
- Head Width (Minimum): 26.79mm
- Head Width (Maximum): 27mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Eye Bolts (Precision Swing)
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Spherical Eye Head
- Thread Length: Part Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4.6 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 444 Type B
