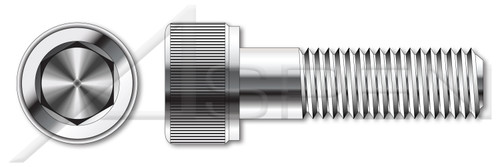

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A cylindrically shaped socket head cap screw is considered the strongest of all head styles.
- An internal hex socket drive is also known as an Allen drive.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M30
- Thread Pitch: 3.5
- Diameter (Dimension): 30mm
- Diameter (Minimum): 29.67mm
- Diameter (Maximum): 30mm
- Length (Nominal): 60mm
- Thread Length: 60mm
- Recess Size: 22mm
- Head Diameter: 45mm
- Head Diameter (Minimum): 44.61mm
- Head Diameter (Maximum): 45mm
- Head Height, Overall: 30mm
- Head Height, Overall (Minimum): 29.48mm
- Head Height, Overall (Maximum): 30mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 912 / ISO 4762
