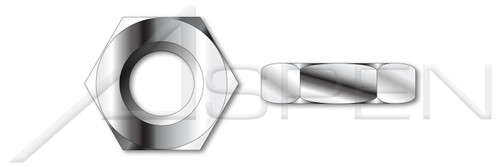

M36-4.0 DIN 936, Metric, Hex Jam Thin Nuts, A2 Stainless Steel

PART NUMBER:
ME582-3640X14X55-000010
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Jam nuts are also known as low form nuts or thin nuts.
  • Jam nuts are about half the height of regular finished nuts.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M36
  • Thread Pitch: 4.0
  • Diameter (Dimension): 36mm
  • Thread Length (Nominal): 14mm
  • Across Flats (Basic): 55mm
  • Across Flats (Minimum): 53.8mm
  • Across Flats (Maximum): 55mm
  • Height (Basic): 14mm
  • Height (Minimum): 12.9mm
  • Height (Maximum): 14mm
PRODUCT ATTRIBUTES
  • Category: Hex Jam Thin Nuts
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Double Chamfered
  • Drive Style: External Hex Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 936
Product UPC Code:
692559699196
Shop by System of Measurement:
Metric
Thread Direction:
Right-Hand Thread
Height (Basic):
14mm
Order:
Nuts
Thread Length (Nominal):
14mm
Shop by Material:
Stainless Steel
Across Flats (Maximum):
55mm
Drive Style:
External Hex Drive
Brand:
Aspen Fasteners
Across Flats (Minimum):
53.8mm
Diameter (Dimension):
36mm
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME582-3640X14X55.zip
Thread Length:
Full Thread
Form and Design:
Double Chamfered
Diameter (Nominal):
M36
Height (Minimum):
12.9mm
Height (Maximum):
14mm
POS:
ME582-3640X14X55-000010
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product37/ME582-3640X14X55.PDF
System of Measurement:
Metric
Standards and Specifications:
DIN 936
Category:
Hex Jam Thin Nuts
Thread Pitch:
4.0
Coating:
Uncoated
Material:
Stainless Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME582-3640X14X55
Across Flats (Basic):
55mm
Material Grade:
A2 Stainless Steel
Product Class:
Internally Threaded Fasteners
  • Description
    • Jam nuts are also known as low form nuts or thin nuts.
    • Jam nuts are about half the height of regular finished nuts.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M36
    • Thread Pitch: 4.0
    • Diameter (Dimension): 36mm
    • Thread Length (Nominal): 14mm
    • Across Flats (Basic): 55mm
    • Across Flats (Minimum): 53.8mm
    • Across Flats (Maximum): 55mm
    • Height (Basic): 14mm
    • Height (Minimum): 12.9mm
    • Height (Maximum): 14mm
    PRODUCT ATTRIBUTES
    • Category: Hex Jam Thin Nuts
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Double Chamfered
    • Drive Style: External Hex Drive
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 936
    Product UPC Code:
    692559699196
  • 3D Product View

Contact us for availability information on part number ME582-3640X14X55-000010. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
