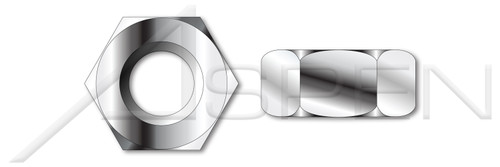

- Hex finished nuts are considered the most commonly used hex nuts.
- DIN 934 hex nuts are the most commonly used metric hex nuts.
- Also known as regular hex nuts.
- A2-80 stainless steel provides a minimum tensile strength of 800N/mm-2 (Mpa).
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M4
- Thread Pitch: 0.7
- Diameter (Dimension): 4mm
- Thread Length (Nominal): 3.2mm
- Across Flats (Basic): 7mm
- Across Flats (Minimum): 6.78mm
- Across Flats (Maximum): 7mm
- Height (Basic): 3.2mm
- Height (Minimum): 2.9mm
- Height (Maximum): 3.2mm
- Washer Face Diameter (Minimum): 5.8mm
PRODUCT ATTRIBUTES- Category: Hex Finished Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2-80 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 934 / ISO 4032
Product UPC Code:
692559699738
- POS:
- ME590-407X32X7-001000
- Material Grade:
- A2-80 Stainless Steel
- Height (Maximum):
- 3.2mm
- Material:
- Stainless Steel
- Brand:
- Aspen Fasteners
- Thread Length (Nominal):
- 3.2mm
- Category:
- Hex Finished Nuts
- Diameter (Dimension):
- 4mm
- Height (Basic):
- 3.2mm
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME590-407X32X7.zip
- Thread Pitch:
- 0.7
- Drive Style:
- External Hex Drive
- Thread Direction:
- Right-Hand Thread
- Product Class:
- Internally Threaded Fasteners
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME590-407X32X7
- Diameter (Nominal):
- M4
- System of Measurement:
- Metric
- Thread Length:
- Full Thread
- Order:
- Nuts
- Across Flats (Maximum):
- 7mm
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Stainless Steel
- Across Flats (Basic):
- 7mm
- Coating:
- Uncoated
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product38/ME590-407X32X7.PDF
- Standards and Specifications:
- DIN 934 / ISO 4032
- Height (Minimum):
- 2.9mm
- Across Flats (Minimum):
- 6.78mm
