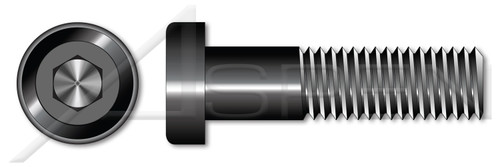

M4-0.7 X 12mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, Class 8.8 Steel, Plain

M4-0.7 X 12mm DIN 7984, Metric, Low Head Hex Socket Cap Screws, Class 8.8 Steel, Plain

PART NUMBER:
ME339-407X12-00400
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
  • An internal hex socket drive is also known as an Allen drive.
  • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M4
  • Thread Pitch: 0.7
  • Diameter (Dimension): 4mm
  • Diameter (Minimum): 3.82mm
  • Diameter (Maximum): 4mm
  • Length (Nominal): 12mm
  • Thread Length (Nominal): 12mm
  • Drive Recess Size: 2.5mm
  • Drive Recess Width (Minimum): 2.52mm
  • Drive Recess Width (Maximum): 2.6mm
  • Drive Recess Depth: 2.3mm
  • Drive Recess Depth (Minimum): 2.18mm
  • Drive Recess Depth (Maximum): 2.42mm
  • Head Diameter: 7mm
  • Head Diameter (Minimum): 6.78mm
  • Head Diameter (Maximum): 7mm
  • Head Height, Overall: 2.8mm
  • Head Height, Overall (Minimum): 2.66mm
  • Head Height, Overall (Maximum): 2.8mm
PRODUCT ATTRIBUTES
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Low Cylindrical Head
  • Drive Style: Hex Socket Drive
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 8.8 Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 7984
Product UPC Code:
692559888460
Diameter (Minimum):
3.82mm
Head Diameter (Minimum):
6.78mm
Head Diameter (Maximum):
7mm
Head Height, Overall:
2.8mm
Head Height, Overall (Minimum):
2.66mm
Head Height, Overall (Maximum):
2.8mm
Diameter (Maximum):
4mm
Thread Pitch:
0.7
Length (Nominal):
12mm
Thread Length:
12mm
Head Diameter:
7mm
Shop by System of Measurement:
Metric
Shop by Material:
Steel
Shop by Application:
Socket Products
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Socket Head Cap Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners
Head Style:
Low Cylindrical Head
Drive Style:
Hex Socket Drive
Thread Direction:
Right-Hand Thread
Material:
Steel
Material Grade:
Class 8.8 Steel
Recess Size:
2.5mm
Coating:
Uncoated
Standards and Specifications:
DIN 7984
Diameter (Nominal):
M4
Diameter (Dimension):
4mm
POS:
ME339-407X12-00400
Brand:
Aspen Fasteners(r)
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME339-407X12.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME339-407X12
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product67/ME339-407X12.PDF
Drive Recess Width (Minimum):
2.52mm
Drive Recess Depth:
2.3mm
Drive Recess Depth (Minimum):
2.18mm
Drive Recess Depth (Maximum):
2.42mm
Drive Recess Width (Maximum):
2.6mm
Drive Recess Size:
2.5mm
Origin:
Origin Undefined
Thread Length (Nominal):
12mm
Print
  • Description
    • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
    • A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
    • An internal hex socket drive is also known as an Allen drive.
    • Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M4
    • Thread Pitch: 0.7
    • Diameter (Dimension): 4mm
    • Diameter (Minimum): 3.82mm
    • Diameter (Maximum): 4mm
    • Length (Nominal): 12mm
    • Thread Length (Nominal): 12mm
    • Drive Recess Size: 2.5mm
    • Drive Recess Width (Minimum): 2.52mm
    • Drive Recess Width (Maximum): 2.6mm
    • Drive Recess Depth: 2.3mm
    • Drive Recess Depth (Minimum): 2.18mm
    • Drive Recess Depth (Maximum): 2.42mm
    • Head Diameter: 7mm
    • Head Diameter (Minimum): 6.78mm
    • Head Diameter (Maximum): 7mm
    • Head Height, Overall: 2.8mm
    • Head Height, Overall (Minimum): 2.66mm
    • Head Height, Overall (Maximum): 2.8mm
    PRODUCT ATTRIBUTES
    • Category: Socket Head Cap Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Low Cylindrical Head
    • Drive Style: Hex Socket Drive
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 8.8 Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 7984
    Product UPC Code:
    692559888460
  • 3D Product View

Contact us for availability information on part number ME339-407X12-00400. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
