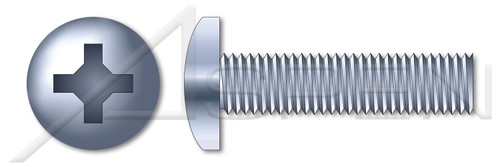

- Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
- Pan head screws are also known as raised cheese head screws.
- Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).
- Diameter (Nominal): M4
- Thread Pitch: 0.7
- Diameter (Dimension): 4mm
- Length (Nominal): 14mm
- Thread Length: 14mm
- Recess Size: #2
- Head Diameter: 8mm
- Head Height, Overall: 3.1mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Machine Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 4.8 Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Standards and Specifications: DIN 7985A / ISO 7045
Product UPC Code:
698435167858
- Category:
- Machine Screws
- Head Height, Overall:
- 3.1mm
- Head Diameter:
- 8mm
- Recess Size:
- #2
- Thread Length:
- 14mm
- Length (Nominal):
- 14mm
- Thread Pitch:
- 0.7
- Diameter (Dimension):
- 4mm
- Diameter (Nominal):
- M4
- Standards and Specifications:
- DIN 7985A / ISO 7045
- Coating Color:
- Clear
- Coating:
- Zinc Plated
- Material Grade:
- Class 4.8 Steel
- Material:
- Steel
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Drive Detail:
- Phillips Type H
- Drive Style:
- Cruciform Recess Drive
- Head Style:
- Pan Head
- Brand:
- Aspen Fasteners(r)
- System of Measurement:
- Metric
- Order:
- Machine Thread Fasteners
- Product Class:
- Externally Threaded Fasteners
