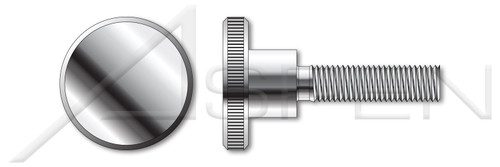

M4-0.7 X 16mm DIN 464, Metric, Thumb Screws, Knurled Flat Head, High Type, Stainless Steel

$267.12 - $289.60
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME546-407X16
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • A thumb screw is designed to be turned using a thumb and finger.
  • Knurls on the side of the head improves the grip.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M4
  • Thread Pitch: 0.7
  • Diameter (Dimension): 4mm
  • Length (Nominal): 16mm
  • Thread Length: 16mm
  • Head Diameter: 16mm
  • Head Diameter (Minimum): 15.65mm
  • Head Diameter (Maximum): 16.35mm
  • Head Height, Overall: 3.5mm
  • Head Height, Overall (Minimum): 3.2mm
  • Head Height, Overall (Maximum): 3.5mm
  • Shoulder Diameter: 8mm
  • Shoulder Diameter (Minimum): 7.64mm
  • Shoulder Diameter (Maximum): 8mm
  • Shoulder Length: 6mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Thumb Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Knurled Flat Head
  • Head Style Detail: High Type
  • Drive Style: Thumb Drive
  • Pitch: Coarse Thread
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: AISI 303 Stainless Steel (18-8)
  • Coating: Uncoated
  • Standards and Specifications: DIN 464
Buy in Bulk and Save
Drive Style:
Thumb Drive
Thread Length:
Full Thread
Thread Direction:
Right-Hand Thread
Material:
Stainless Steel
Material Grade:
AISI 303 Stainless Steel (18-8)
Coating:
Uncoated
Standards and Specifications:
DIN 464
Diameter (Nominal):
M4
Diameter (Dimension):
4mm
Thread Pitch:
0.7
Length (Nominal):
16mm
Thread Length:
16mm
Head Diameter:
16mm
Head Diameter (Minimum):
15.65mm
Head Diameter (Maximum):
16.35mm
Head Height, Overall:
3.5mm
Head Height, Overall (Minimum):
3.2mm
Head Height, Overall (Maximum):
3.5mm
Shoulder Diameter:
8mm
Shoulder Diameter (Minimum):
7.64mm
Shoulder Diameter (Maximum):
8mm
Shoulder Length:
6mm
Shop by System of Measurement:
Metric
Shop by Material:
Stainless Steel
Product Class:
Externally Threaded Fasteners
Order:
Machine Thread Fasteners
Category:
Thumb Screws
System of Measurement:
Metric
Brand:
Aspen Fasteners(r)
Head Style:
Knurled Flat Head
Head Style Detail:
High Type
Pitch:
Coarse Thread
