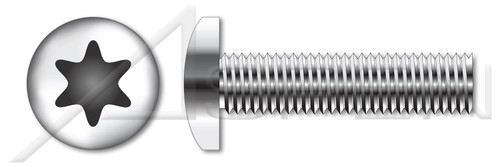

- Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.
- Pan head screws are also known as raised cheese head screws.
- A 6-lobe recess is also known as a hexalobular internal drive.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M4
- Thread Pitch: 0.7
- Diameter (Dimension): 4.07mm
- Length (Nominal): 6mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Thread Rolling Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Trilobe Triangular Body with Threads for Metals
- Head Style: Pan Head
- Drive Style: 6Lobe Drive
- Drive Detail: Torx® Generic Alternative
- Threading: Machine Screw Threading
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Material Processes: Passivated
- Coating: Waxed
- Standards and Specifications: DIN 7500 Type CE
Product UPC Code:
692559646220
- Thread Pitch:
- 0.7
- Diameter (Nominal):
- M4
- Product Class:
- Externally Threaded Fasteners
- Order:
- Thread Cutting Fasteners
- Category:
- Thread Rolling Screws
- System of Measurement:
- Metric
- Form and Design:
- Trilobe Triangular Body with Threads for Metals
- Head Style:
- Pan Head
- Brand:
- Aspen Fasteners
- Drive Style:
- 6Lobe Drive
- Drive Detail:
- Torx(r) Generic Alternative
- Threading:
- Machine Screw Threading
- Thread Length:
- Full Thread
- Thread Direction:
- Right-Hand Thread
- Stainless Steel:
- Stainless Steel
- Length (Nominal):
- 6mm
- Material:
- Stainless Steel
- Material Grade:
- A2 Stainless Steel
- Material Processes:
- Passivated
- Coating:
- Waxed
- Standards and Specifications:
- DIN 7500 Type CE
- Diameter (Dimension):
- 4.07mm
