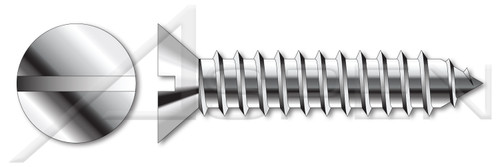

- Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M4.8
- Diameter (Dimension): 4.8mm
- Length (Nominal): 16mm
- Thread Length: 13mm
- Head Diameter: 9.5mm
- Head Height, Overall: 3mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Tapping Sheet Metal Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Flat Countersunk Head
- Head Style Detail: 80 Degree Countersink
- Drive Style: Slotted Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7972 / ISO 1482
Product UPC Code:
692559621876
- Stainless Steel:
- Stainless Steel
- Product Class:
- Externally Threaded Fasteners
- Order:
- Thread Cutting Fasteners
- Category:
- Self-Tapping Sheet Metal Screws
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners
- Head Style:
- Flat Countersunk Head
- Head Style Detail:
- 80 Degree Countersink
- Drive Style:
- Slotted Drive
- Thread Direction:
- Right-Hand Thread
- Thread Length:
- Full Thread
- Material:
- Stainless Steel
- Material Grade:
- A2 Stainless Steel
- Coating:
- Uncoated
- Standards and Specifications:
- DIN 7972 / ISO 1482
- Diameter (Nominal):
- M4.8
- Diameter (Dimension):
- 4.8mm
- Length (Nominal):
- 16mm
- Thread Length:
- 13mm
- Head Diameter:
- 9.5mm
- Head Height, Overall:
- 3mm
