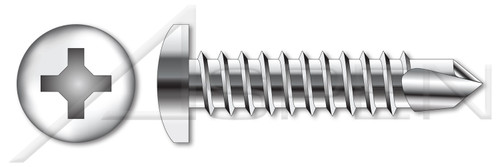

- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Pan head screws are also known as raised cheese head screws.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M4.8
- Diameter (Dimension): 4.8mm
- Length (Nominal): 32mm
- Recess Size: #2
- Head Diameter: 9.5mm
- Head Height, Overall: 3.55mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7504 Type M
- Buy 3 - 9 and get 10% off
- Buy 10 or above and get 20% off
- Thread Direction:
- Right-Hand Thread
- Drive Detail:
- Phillips Type H
- Drive Style:
- Cruciform Recess Drive
- Head Style:
- Pan Head
- Brand:
- Aspen Fasteners(r)
- System of Measurement:
- Metric
- Category:
- Self-Drilling Screws
- Stainless Steel:
- Stainless Steel
- Product Class:
- Externally Threaded Fasteners
- Order:
- Thread Cutting Fasteners
- Diameter (Nominal):
- M4.8
- Standards and Specifications:
- DIN 7504 Type M
- Head Height, Overall:
- 3.55mm
- Head Diameter:
- 9.5mm
- Coating:
- Uncoated
- Recess Size:
- #2
- Length (Nominal):
- 32mm
- Diameter (Dimension):
- 4.8mm
- Material Grade:
- A4 Stainless Steel
- Material:
- Stainless Steel
- Point:
- Self-Drilling Point
Buy in bulk and save
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
-
Description
- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Pan head screws are also known as raised cheese head screws.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M4.8
- Diameter (Dimension): 4.8mm
- Length (Nominal): 32mm
- Recess Size: #2
- Head Diameter: 9.5mm
- Head Height, Overall: 3.55mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Cruciform Recess Drive
- Drive Detail: Phillips Type H
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7504 Type M
- Product UPC Code:
- 692559643090
