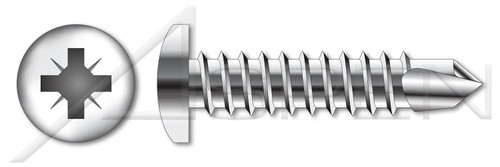

M4.8 X 38mm DIN 7504 Type M, Metric, Self-Drilling Screws, Pan Pozidriv Alternative Drive, A2 Stainless Steel

PART NUMBER:
ME441-48X38-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
  • Pan head screws are also known as raised cheese head screws.
  • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M4.8
  • Diameter (Dimension): 4.8mm
  • Length (Nominal): 38mm
  • Recess Size: #2
  • Head Diameter: 9.5mm
  • Head Height, Overall: 3.55mm
  • Product Class: Externally Threaded Fasteners
  • Order: Thread Cutting Fasteners
  • Category: Self-Drilling Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Pan Head
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Pozidriv Type Z
  • Thread Direction: Right-Hand Thread
  • Point: Self-Drilling Point
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 7504 Type M
Product UPC Code:
692559642628
Brand:
Aspen Fasteners
Category:
Self-Drilling Screws
Order:
Thread Cutting Fasteners
Product Class:
Externally Threaded Fasteners
Stainless Steel:
Stainless Steel
Drive Style:
Cruciform Recess Drive
Drive Detail:
Pozidriv Type Z
Thread Direction:
Right-Hand Thread
Coating:
Uncoated
Point:
Self-Drilling Point
Standards and Specifications:
DIN 7504 Type M
Diameter (Nominal):
M4.8
Diameter (Dimension):
4.8mm
Length (Nominal):
38mm
Recess Size:
#2
Head Height, Overall:
3.55mm
Material:
Stainless Steel
Material Grade:
A2 Stainless Steel
Head Diameter:
9.5mm
Head Style:
Pan Head
System of Measurement:
Metric
  • Description
    • A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
    • Pan head screws are also known as raised cheese head screws.
    • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    • Diameter (Nominal): M4.8
    • Diameter (Dimension): 4.8mm
    • Length (Nominal): 38mm
    • Recess Size: #2
    • Head Diameter: 9.5mm
    • Head Height, Overall: 3.55mm
    • Product Class: Externally Threaded Fasteners
    • Order: Thread Cutting Fasteners
    • Category: Self-Drilling Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Pan Head
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Pozidriv Type Z
    • Thread Direction: Right-Hand Thread
    • Point: Self-Drilling Point
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 7504 Type M
    Product UPC Code:
    692559642628
