- A drill shaped point is used to cut through thick and hard material without needing a pilot hole.
- Pan head screws are also known as raised cheese head screws.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.

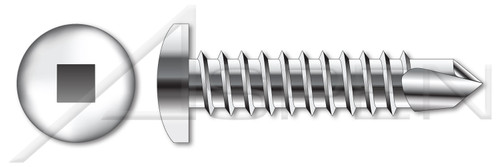

- Diameter (Nominal): M4.8
- Diameter (Dimension): 4.8mm
- Length (Nominal): 70mm
- Recess Size: #2
- Head Diameter: 9.5mm
- Head Height, Overall: 3.55mm
- Product Class: Externally Threaded Fasteners
- Order: Thread Cutting Fasteners
- Category: Self-Drilling Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Pan Head
- Drive Style: Internal Square Drive
- Thread Direction: Right-Hand Thread
- Point: Self-Drilling Point
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7504 Type M
Product UPC Code:
692559643496
- Category:
- Self-Drilling Screws
- Diameter (Nominal):
- M4.8
- Head Height, Overall:
- 3.55mm
- Head Diameter:
- 9.5mm
- Recess Size:
- #2
- Length (Nominal):
- 70mm
- Diameter (Dimension):
- 4.8mm
- Standards and Specifications:
- DIN 7504 Type M
- Stainless Steel:
- Stainless Steel
- Product Class:
- Externally Threaded Fasteners
- Order:
- Thread Cutting Fasteners
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners
- Head Style:
- Pan Head
- Drive Style:
- Internal Square Drive
- Thread Direction:
- Right-Hand Thread
- Point:
- Self-Drilling Point
- Material:
- Stainless Steel
- Material Grade:
- A2 Stainless Steel
- Coating:
- Uncoated
