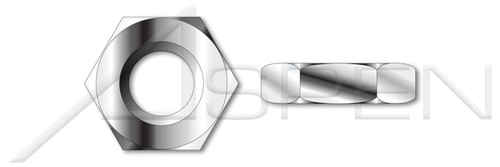

- Jam nuts are also known as low form nuts or thin nuts.
- Jam nuts are about half the height of regular finished nuts.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M5
- Thread Pitch: 0.8
- Diameter (Dimension): 5mm
- Thread Length (Nominal): 2.7mm
- Across Flats (Basic): 8mm
- Across Flats (Minimum): 7.78mm
- Across Flats (Maximum): 8mm
- Height (Basic): 2.7mm
- Height (Minimum): 2.45mm
- Height (Maximum): 2.7mm
PRODUCT ATTRIBUTES- Category: Hex Jam Thin Nuts
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Double Chamfered
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 439B
Product UPC Code:
692559614779
- Material Grade:
- A4 Stainless Steel
- cad_3d_file_url:
- https://3d.aspenfasteners.com/assets/obj/ME236-508X27X8.zip
- Drive Style:
- External Hex Drive
- Thread Direction:
- Right-Hand Thread
- Across Flats (Maximum):
- 8mm
- Across Flats (Minimum):
- 7.78mm
- Standards and Specifications:
- DIN 439B
- Product Class:
- Internally Threaded Fasteners
- Brand:
- Aspen Fasteners(r)
- Shop by Material:
- Stainless Steel
- specifications_document_url:
- https://www.aspenfasteners.com/content/2D_PDF/product93/ME236-508X27X8.PDF
- Height (Maximum):
- 2.7mm
- Diameter (Nominal):
- M5
- Thread Pitch:
- 0.8
- Height (Minimum):
- 2.45mm
- Form and Design:
- Double Chamfered
- POS:
- ME236-508X27X8-003000
- Category:
- Hex Jam Thin Nuts
- Thread Length (Nominal):
- 2.7mm
- Coating:
- Uncoated
- Across Flats (Basic):
- 8mm
- Shop by System of Measurement:
- Metric
- Thread Length:
- Full Thread
- Material:
- Stainless Steel
- Height (Basic):
- 2.7mm
- cad_3d_viewer_url:
- https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME236-508X27X8
- System of Measurement:
- Metric
- Order:
- Nuts
- Diameter (Dimension):
- 5mm
