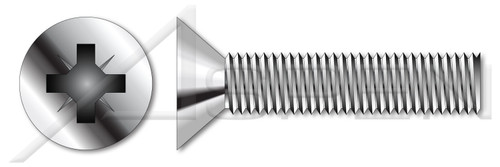

M5-0.8 X 100mm DIN 965 / ISO 7046, Metric, Machine Screws, Flat Pozidriv Alternative Drive, Full Thread, A2 Stainless Steel

PART NUMBER:
ME519-508X100-000400
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
  • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Length (Nominal): 100mm
  • Thread Length (Nominal): 97.5mm
  • Drive Recess Size: #2
  • Drive Recess Width: 4.4mm
  • Drive Recess Depth (Minimum): 2.05mm
  • Drive Recess Depth (Maximum): 2.51mm
  • Head Diameter: 9.2mm
  • Head Diameter (Minimum): 8.84mm
  • Head Diameter (Maximum): 9.2mm
  • Head Height, Overall: 2.5mm
PRODUCT ATTRIBUTES
  • Category: Machine Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners
  • Head Style: Flat Countersunk Head
  • Head Style Detail: 90 Degree Countersink
  • Drive Style: Cruciform Recess Drive
  • Drive Detail: Pozidriv Type Z
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Origin: Origin Undefined
  • Standards and Specifications: DIN 965 / ISO 7046
Product UPC Code:
692559682198
Shop by Material:
Stainless Steel
Head Style:
Flat Countersunk Head
Head Diameter (Maximum):
9.2mm
Thread Length (Nominal):
97.5mm
Head Style Detail:
90 Degree Countersink
Shop by System of Measurement:
Metric
Head Diameter:
9.2mm
Drive Detail:
Pozidriv Type Z
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product51/ME519-508X100.PDF
Product Class:
Externally Threaded Fasteners
Coating:
Uncoated
Diameter (Dimension):
5mm
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME519-508X100.zip
Order:
Machine Thread Fasteners
Diameter (Nominal):
M5
System of Measurement:
Metric
Thread Pitch:
0.8
Origin:
Origin Undefined
Drive Recess Width:
4.4mm
Thread Direction:
Right-Hand Thread
Category:
Machine Screws
POS:
ME519-508X100-000400
Material Grade:
A2 Stainless Steel
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME519-508X100
Head Height, Overall:
2.5mm
Brand:
Aspen Fasteners
Material:
Stainless Steel
Standards and Specifications:
DIN 965 / ISO 7046
Thread Length:
Full Thread
Drive Style:
Cruciform Recess Drive
Drive Recess Size:
#2
Length (Nominal):
100mm
Head Diameter (Minimum):
8.84mm
  • Description
    • Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.
    • A Pozidriv recess allows for increased torque while reducing the risk of drive cam-out.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Thread Pitch: 0.8
    • Diameter (Dimension): 5mm
    • Length (Nominal): 100mm
    • Thread Length (Nominal): 97.5mm
    • Drive Recess Size: #2
    • Drive Recess Width: 4.4mm
    • Drive Recess Depth (Minimum): 2.05mm
    • Drive Recess Depth (Maximum): 2.51mm
    • Head Diameter: 9.2mm
    • Head Diameter (Minimum): 8.84mm
    • Head Diameter (Maximum): 9.2mm
    • Head Height, Overall: 2.5mm
    PRODUCT ATTRIBUTES
    • Category: Machine Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners
    • Head Style: Flat Countersunk Head
    • Head Style Detail: 90 Degree Countersink
    • Drive Style: Cruciform Recess Drive
    • Drive Detail: Pozidriv Type Z
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Origin: Origin Undefined
    • Standards and Specifications: DIN 965 / ISO 7046
    Product UPC Code:
    692559682198
  • 3D Product View

Contact us for availability information on part number ME519-508X100-000400. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
