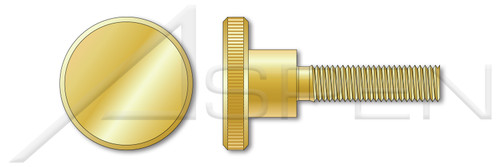

- A thumb screw is designed to be turned using a thumb and finger.
- Knurls on the side of the head improves the grip.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
- Diameter (Nominal): M5
- Thread Pitch: 0.8
- Diameter (Dimension): 5mm
- Length (Nominal): 12mm
- Thread Length: 12mm
- Head Diameter: 20mm
- Head Diameter (Minimum): 19.58mm
- Head Diameter (Maximum): 20.42mm
- Head Height, Overall: 4mm
- Head Height, Overall (Minimum): 3.7mm
- Head Height, Overall (Maximum): 4mm
- Shoulder Diameter: 10mm
- Shoulder Diameter (Minimum): 9.64mm
- Shoulder Diameter (Maximum): 10mm
- Shoulder Length: 7.5mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Thumb Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Knurled Flat Head
- Head Style Detail: High Type
- Drive Style: Thumb Drive
- Pitch: Coarse Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Brass
- Material Grade: Standard Commercial Grade
- Coating: Uncoated
- Standards and Specifications: DIN 464
- Material:
- Brass
- Shop by System of Measurement:
- Metric
- Shop by Material:
- Brass
- Product Class:
- Externally Threaded Fasteners
- Order:
- Machine Thread Fasteners
- Category:
- Thumb Screws
- System of Measurement:
- Metric
- Brand:
- Aspen Fasteners(r)
- Head Style:
- Knurled Flat Head
- Head Style Detail:
- High Type
- Drive Style:
- Thumb Drive
- Pitch:
- Coarse Thread
- Thread Length:
- Full Thread
- Shoulder Length:
- 7.5mm
- Shoulder Diameter (Maximum):
- 10mm
- Shoulder Diameter (Minimum):
- 9.64mm
- Shoulder Diameter:
- 10mm
- Head Height, Overall (Maximum):
- 4mm
- Head Height, Overall (Minimum):
- 3.7mm
- Head Height, Overall:
- 4mm
- Head Diameter (Maximum):
- 20.42mm
- Head Diameter (Minimum):
- 19.58mm
- Head Diameter:
- 20mm
- Thread Length:
- 12mm
- Length (Nominal):
- 12mm
- Thread Pitch:
- 0.8
- Diameter (Dimension):
- 5mm
- Diameter (Nominal):
- M5
- Standards and Specifications:
- DIN 464
- Coating:
- Uncoated
- Material Grade:
- Standard Commercial Grade
- Thread Direction:
- Right-Hand Thread
-
Description
- A thumb screw is designed to be turned using a thumb and finger.
- Knurls on the side of the head improves the grip.
- Brass: machinable, ductile, corrosion resistant, excellent electrical and thermal conductivity.
- Diameter (Nominal): M5
- Thread Pitch: 0.8
- Diameter (Dimension): 5mm
- Length (Nominal): 12mm
- Thread Length: 12mm
- Head Diameter: 20mm
- Head Diameter (Minimum): 19.58mm
- Head Diameter (Maximum): 20.42mm
- Head Height, Overall: 4mm
- Head Height, Overall (Minimum): 3.7mm
- Head Height, Overall (Maximum): 4mm
- Shoulder Diameter: 10mm
- Shoulder Diameter (Minimum): 9.64mm
- Shoulder Diameter (Maximum): 10mm
- Shoulder Length: 7.5mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Thumb Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Knurled Flat Head
- Head Style Detail: High Type
- Drive Style: Thumb Drive
- Pitch: Coarse Thread
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Brass
- Material Grade: Standard Commercial Grade
- Coating: Uncoated
- Standards and Specifications: DIN 464
