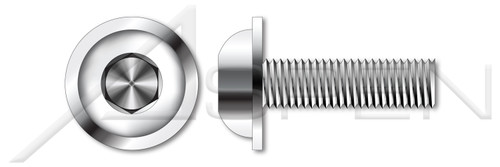

M5-0.8 X 12mm ISO 7380-2, Metric, Flanged Button Head Hex Socket Cap Screws, Full Thread, A4 Stainless Steel

$240.65
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PART NUMBER:
ME484-508X12-001000
Buy in Bulk and Save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
  • Flange acts like a built-in washer offering a larger bearing surface for load distribution.
  • An internal hex socket drive is also known as an Allen drive.
  • A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Diameter (Minimum): 4.82mm
  • Diameter (Maximum): 5mm
  • Length (Nominal): 12mm
  • Thread Length: 12mm
  • Recess Size: 3mm
  • Head Diameter: 8.8mm
  • Head Diameter (Minimum): 8.4mm
  • Head Diameter (Maximum): 8.8mm
  • Head Height, Overall: 2.75mm
  • Head Height, Overall (Minimum): 2.5mm
  • Head Height, Overall (Maximum): 2.75mm
  • Flange Diameter: 11.8mm
  • Flange Diameter (Minimum): 11.1mm
  • Flange Diameter (Maximum): 11.8mm
  • Flange Thickness: 1mm
  • Flange Thickness (Minimum): 0.8mm
  • Flange Thickness (Maximum): 1mm
  • Product Class: Externally Threaded Fasteners
  • Order: Machine Thread Fasteners
  • Category: Socket Head Cap Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Button Head with Flange
  • Drive Style: Hex Socket Drive
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Material: Stainless Steel
  • Material Grade: A4 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: ISO 7380-2
