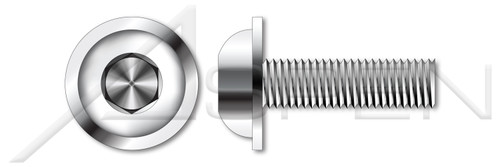

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- Flange acts like a built-in washer offering a larger bearing surface for load distribution.
- An internal hex socket drive is also known as an Allen drive.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M5
- Thread Pitch: 0.8
- Diameter (Dimension): 5mm
- Diameter (Minimum): 4.82mm
- Diameter (Maximum): 5mm
- Length (Nominal): 45mm
- Thread Length: 45mm
- Recess Size: 3mm
- Head Diameter: 8.8mm
- Head Diameter (Minimum): 8.4mm
- Head Diameter (Maximum): 8.8mm
- Head Height, Overall: 2.75mm
- Head Height, Overall (Minimum): 2.5mm
- Head Height, Overall (Maximum): 2.75mm
- Flange Diameter: 11.8mm
- Flange Diameter (Minimum): 11.1mm
- Flange Diameter (Maximum): 11.8mm
- Flange Thickness: 1mm
- Flange Thickness (Minimum): 0.8mm
- Flange Thickness (Maximum): 1mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Button Head with Flange
- Drive Style: Hex Socket Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: ISO 7380-2
Product UPC Code:
692559632117
