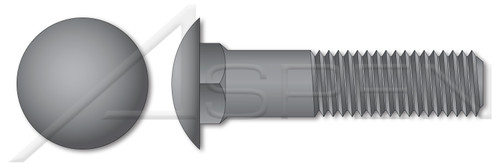

M5-0.8 X 60mm DIN 603 / ISO 8677, Metric, Carriage Bolts, Round Head, Square Neck, Class 4.6 Steel

PART NUMBER:
ME103-508X60-001000
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
Buy in bulk and save
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Also known as coach bolts, are typically used to fasten metal to wood.
  • The square neck under the head locks the bolt into place.
  • Class 4.6 steel is a low or medium carbon steel with a minimum tensile strength of 400N/mm-2 (Mpa).
  • Can be used as a security fastener. The smooth head prevents unfastening from the head side.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Thread Pitch: 0.8
  • Diameter (Dimension): 5mm
  • Diameter (Minimum): 4.52mm
  • Diameter (Maximum): 5mm
  • Length (Nominal): 60mm
  • Thread Length (Nominal): 16mm
  • Neck Width: 5.48mm
  • Neck Height: 4.1mm
  • Head Diameter (Minimum): 12.45mm
  • Head Diameter (Maximum): 13.55mm
  • Head Height, Overall (Minimum): 2.7mm
  • Head Height, Overall (Maximum): 3.3mm
PRODUCT ATTRIBUTES
  • Category: Carriage Bolts
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Head Style: Round Head
  • Head Style Detail: Square Neck
  • Thread Length: Standard Thread Length
  • Thread Direction: Right-Hand Thread
  • Material: Steel
  • Material Grade: Class 4.6 Steel
  • Coating: Uncoated
  • Standards and Specifications: DIN 603 / ISO 8677
Product UPC Code:
698435941052
Buy in bulk and save
Brand:
Aspen Fasteners(r)
Category:
Carriage Bolts
Coating:
Uncoated
Diameter (Dimension):
5mm
Diameter (Maximum):
5mm
Diameter (Minimum):
4.52mm
Diameter (Nominal):
M5
Head Diameter (Maximum):
13.55mm
Head Diameter (Minimum):
12.45mm
Head Height, Overall (Maximum):
3.3mm
Head Height, Overall (Minimum):
2.7mm
Head Style:
Round Head
Head Style Detail:
Square Neck
Length (Nominal):
60mm
Material:
Steel
Material Grade:
Class 4.6 Steel
Neck Height:
4.1mm
Neck Width:
5.48mm
Order:
Machine Thread Fasteners
POS:
ME103-508X60-001000
Product Class:
Externally Threaded Fasteners
Standards and Specifications:
DIN 603 / ISO 8677
System of Measurement:
Metric
Thread Direction:
Right-Hand Thread
Thread Length:
Standard Thread Length
Thread Length (Nominal):
16mm
Thread Pitch:
0.8
cad_3d_file_url:
https://3d.aspenfasteners.com/assets/obj/ME103-508X60.zip
cad_3d_viewer_url:
https://3d.aspenfasteners.com/viewer/?cad_model=obj/ME103-508X60
specifications_document_url:
https://www.aspenfasteners.com/content/2D_PDF/product92/ME103-508X60.PDF
Shop by Material:
Steel
Shop by System of Measurement:
Metric
  • Description
    • Also known as coach bolts, are typically used to fasten metal to wood.
    • The square neck under the head locks the bolt into place.
    • Class 4.6 steel is a low or medium carbon steel with a minimum tensile strength of 400N/mm-2 (Mpa).
    • Can be used as a security fastener. The smooth head prevents unfastening from the head side.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Thread Pitch: 0.8
    • Diameter (Dimension): 5mm
    • Diameter (Minimum): 4.52mm
    • Diameter (Maximum): 5mm
    • Length (Nominal): 60mm
    • Thread Length (Nominal): 16mm
    • Neck Width: 5.48mm
    • Neck Height: 4.1mm
    • Head Diameter (Minimum): 12.45mm
    • Head Diameter (Maximum): 13.55mm
    • Head Height, Overall (Minimum): 2.7mm
    • Head Height, Overall (Maximum): 3.3mm
    PRODUCT ATTRIBUTES
    • Category: Carriage Bolts
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Head Style: Round Head
    • Head Style Detail: Square Neck
    • Thread Length: Standard Thread Length
    • Thread Direction: Right-Hand Thread
    • Material: Steel
    • Material Grade: Class 4.6 Steel
    • Coating: Uncoated
    • Standards and Specifications: DIN 603 / ISO 8677
    Product UPC Code:
    698435941052
