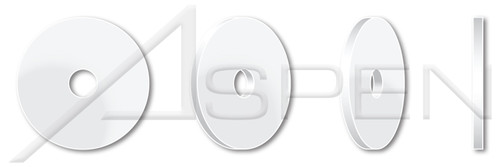

- Fender washers have a particularly large outside diameter in relation to the center hole.
- Use when a large bearing surface is required.
- Nylon 6/6 is a general purpose Polyamide with excellent tensile strength.
- Diameter (Nominal): M5
- Diameter (Dimension): 5mm
- Inside Diameter (Nominal): 5.3mm
- Outside Diameter (Nominal): 15mm
- Thickness (Nominal): 1.2mm
- Product Class: Washers
- Order: Flat Washers
- Category: Fender Washers
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: OD 3.0 X Diameter
- Material: Nylon
- Material Grade: Type 6/6
- Coating: Uncoated
- Standards and Specifications: DIN 9021 / ISO 7093
Product UPC Code:
692559765211
- Form and Design:
- OD 3.0 X Diameter
- Material Grade:
- Type 6/6
- Brand:
- Aspen Fasteners(r)
- Material:
- Nylon
- System of Measurement:
- Metric
- Category:
- Fender Washers
- Thickness (Nominal):
- 1.2mm
- Outside Diameter (Nominal):
- 15mm
- Inside Diameter (Nominal):
- 5.3mm
- Diameter (Dimension):
- 5mm
- Diameter (Nominal):
- M5
- Order:
- Flat Washers
- Product Class:
- Washers
- Nylon:
- Nylon
- Standards and Specifications:
- DIN 9021 / ISO 7093
- Coating:
- Uncoated
