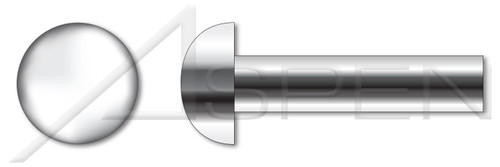

- Solid rivets are simply a shaft and head designed to be deformed with a hammer or rivet gun.
- A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES- Diameter (Nominal): M5
- Diameter (Dimension): 5mm
- Diameter (Minimum): 4.82mm
- Diameter (Maximum): 5.15mm
- Length (Nominal): 10mm
- Unthreaded Shank Length: 10mm
- Head Diameter: 8.8mm
- Head Diameter (Minimum): 8.22mm
- Head Diameter (Maximum): 8.8mm
- Head Height, Overall: 3mm
- Head Height, Overall (Minimum): 2.875mm
- Head Height, Overall (Maximum): 3.125mm
PRODUCT ATTRIBUTES- Category: Solid Rivets
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Round Head
- Material: Stainless Steel
- Material Grade: A2 Stainless Steel
- Coating: Uncoated
- Standards and Specifications: DIN 660 / ISO 1051
Product UPC Code:
698435910492
- Head Diameter:
- 8.8mm
- Material Grade:
- A2 Stainless Steel
- Coating:
- Uncoated
- Material:
- Stainless Steel
- Head Style:
- Round Head
- Diameter (Minimum):
- 4.82mm
- Standards and Specifications:
- DIN 660 / ISO 1051
- Length (Nominal):
- 10mm
- Diameter (Nominal):
- M5
- Category:
- Solid Rivets
- Brand:
- Aspen Fasteners(r)
- System of Measurement:
- Metric
- Order:
- Rivets
- Shop by System of Measurement:
- Metric
- Product Class:
- Rivets
- Diameter (Maximum):
- 5.15mm
- Head Height, Overall (Maximum):
- 3.125mm
- Diameter (Dimension):
- 5mm
- Head Height, Overall (Minimum):
- 2.875mm
- Shop by Material:
- Stainless Steel
- Head Height, Overall:
- 3mm
- Head Diameter (Maximum):
- 8.8mm
- Head Diameter (Minimum):
- 8.22mm
