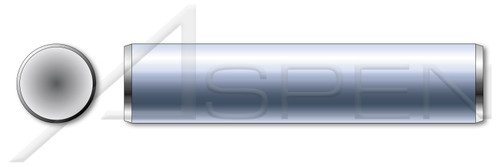

- Using receiving holes, dowel pins use friction to hold parts of an assembly together.
- Can be used as pivot pins, hinges, or locating pins.
- A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): M5
- Diameter (Dimension): 5mm
- Diameter (Minimum): 5.004mm
- Diameter (Maximum): 5.012mm
- Length (Nominal): 28mm
- Ball End Height: 0.75mm
- Product Class: Pins and Wireforms
- Order: Dowel Pins
- Category: Solid Dowel Pins
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Form and Design: Rounded Ends
- Tolerance: Tolerance m6
- Material: Stainless Steel
- Material Grade: A4 Stainless Steel
- Material Processes: Unhardened
- Coating: Uncoated
- Standards and Specifications: DIN 7 Type A
Product UPC Code:
692559703657
