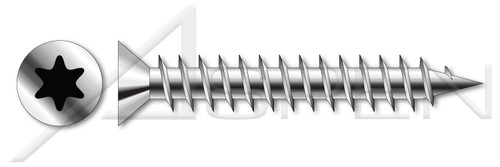

M5 X 30mm Particle Board Screws, Metric, Flat 6Lobe Torx(r) Drive, Full Thread, A2 Stainless Steel, Art. 9047

PART NUMBER:
ME742-5X30-001500
Free Shipping Free ground shipping to the 48 contiguous US states.
Normal delivery time 2-3 days.
For more information, visit our Shipping and Deliveries page.
(No reviews yet) Write a Review
PACK QUANTITY PRICE PER PACK Availability SELECT NUMBER OF PACKS Add to cart
question By saving items to your Saved Items lists, you can quickly and easily organize and retrieve the parts that are important to you. Your can create and name as many lists as you require and add as many parts as you need to each of your lists.
  • Particle board screws are designed for use in dense woods such as particle boards or chipboards.
  • A 6-lobe recess is also known as a hexalobular internal drive.
  • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
  • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
  • Stainless steel significantly improves resistance to tarnishing or corrosion.
DIMENSIONAL ATTRIBUTES
  • Diameter (Nominal): M5
  • Diameter (Dimension): 5mm
  • Length (Nominal): 30mm
  • Thread Length (Nominal): 27mm
  • Drive Size: T25
  • Head Diameter: 10mm
  • Head Height, Overall: 3mm
PRODUCT ATTRIBUTES
  • Category: Particle Board Screws
  • System of Measurement: Metric
  • Brand: Aspen Fasteners®
  • Form and Design: Reinforced Head
  • Head Style: Flat Countersunk Head
  • Drive Style: 6Lobe Drive
  • Drive Detail: Torx® Generic Alternative
  • Thread Length: Full Thread
  • Thread Direction: Right-Hand Thread
  • Point: Standard Point
  • Material: Stainless Steel
  • Material Grade: A2 Stainless Steel
  • Coating: Uncoated
  • Standards and Specifications: Art. 9047
Form and Design:
Reinforced Head
Head Height, Overall:
3mm
Head Diameter:
10mm
Recess Size:
T25
Thread Length (Nominal):
27mm
Length (Nominal):
30mm
Diameter (Dimension):
5mm
Diameter (Nominal):
M5
Standards and Specifications:
Art. 9047
Coating:
Uncoated
Material Grade:
A2 Stainless Steel
Material:
Stainless Steel
Point:
Standard Point
Thread Direction:
Right-Hand Thread
Thread Length:
Full Thread
Drive Detail:
Torx(r) Generic Alternative
Drive Style:
6Lobe Drive
Head Style:
Flat Countersunk Head
Brand:
Aspen Fasteners
System of Measurement:
Metric
Category:
Particle Board Screws
Order:
Thread Cutting Fasteners
Product Class:
Externally Threaded Fasteners
Shop by Material:
Stainless Steel
Shop by System of Measurement:
Metric
  • Description
    • Particle board screws are designed for use in dense woods such as particle boards or chipboards.
    • A 6-lobe recess is also known as a hexalobular internal drive.
    • Flat countersunk head screws sit flush with the surface of the material they are inserted into.
    • A2 stainless steel is functionally equivalent to 304 grade, also known as 18-8 stainless steel.
    • Stainless steel significantly improves resistance to tarnishing or corrosion.
    DIMENSIONAL ATTRIBUTES
    • Diameter (Nominal): M5
    • Diameter (Dimension): 5mm
    • Length (Nominal): 30mm
    • Thread Length (Nominal): 27mm
    • Drive Size: T25
    • Head Diameter: 10mm
    • Head Height, Overall: 3mm
    PRODUCT ATTRIBUTES
    • Category: Particle Board Screws
    • System of Measurement: Metric
    • Brand: Aspen Fasteners®
    • Form and Design: Reinforced Head
    • Head Style: Flat Countersunk Head
    • Drive Style: 6Lobe Drive
    • Drive Detail: Torx® Generic Alternative
    • Thread Length: Full Thread
    • Thread Direction: Right-Hand Thread
    • Point: Standard Point
    • Material: Stainless Steel
    • Material Grade: A2 Stainless Steel
    • Coating: Uncoated
    • Standards and Specifications: Art. 9047

Contact us for availability information on part number ME742-5X30-001500. Please chat with us, call us, e-mail us, or use the form below. Our customer support team will find the best delivery options for you.
