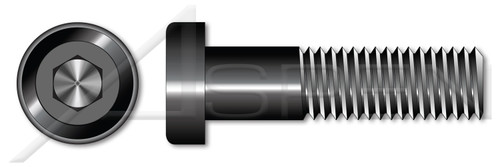

- Socket cap screws are precision fasteners often used in machine parts, die fixturing and clamping.
- A low head socket cap screw offers a reduced profile head height and uses a smaller drive recess.
- An internal hex socket drive is also known as an Allen drive.
- Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).
- Diameter (Nominal): M6
- Thread Pitch: 1.0
- Diameter (Dimension): 6mm
- Diameter (Minimum): 5.82mm
- Diameter (Maximum): 6mm
- Length (Nominal): 10mm
- Thread Length: 10mm
- Recess Size: 4mm
- Head Diameter: 10mm
- Head Diameter (Minimum): 9.78mm
- Head Diameter (Maximum): 10mm
- Head Height, Overall: 4mm
- Head Height, Overall (Minimum): 3.82mm
- Head Height, Overall (Maximum): 4mm
- Product Class: Externally Threaded Fasteners
- Order: Machine Thread Fasteners
- Category: Socket Head Cap Screws
- System of Measurement: Metric
- Brand: Aspen Fasteners®
- Head Style: Low Cylindrical Head
- Drive Style: Hex Socket Drive
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Class 8.8 Steel
- Coating: Uncoated
- Standards and Specifications: DIN 7984
Product UPC Code:
692559888705
